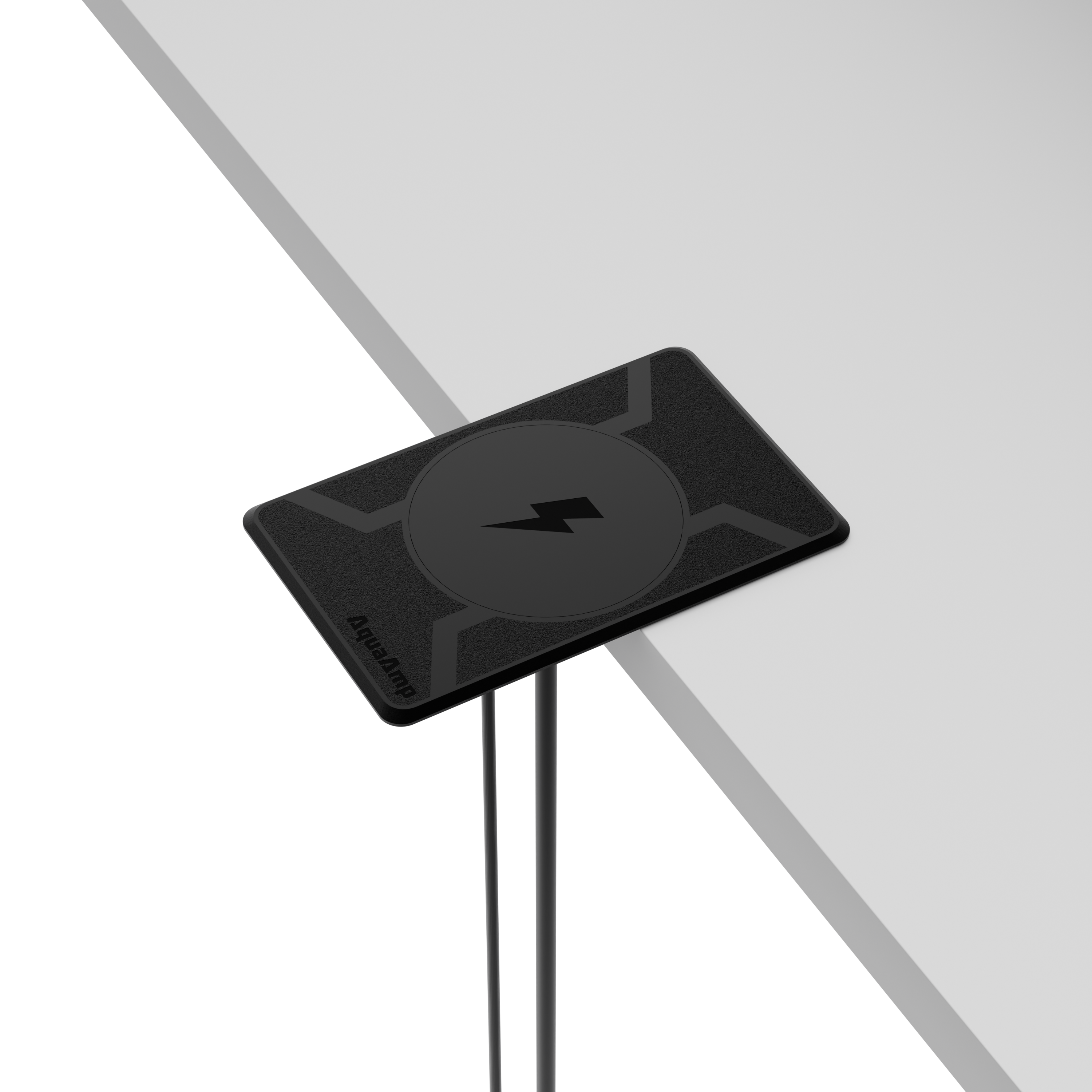

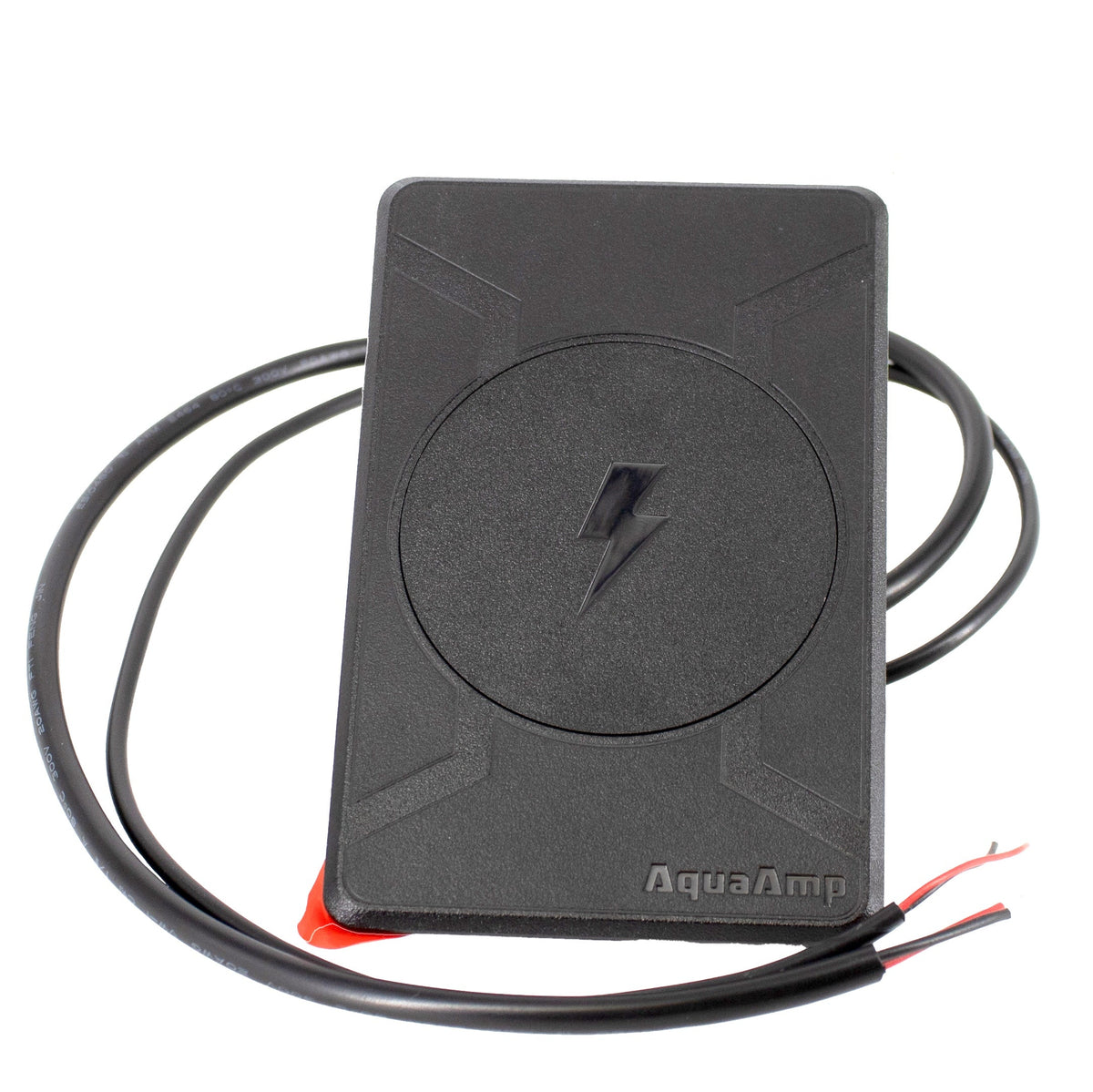

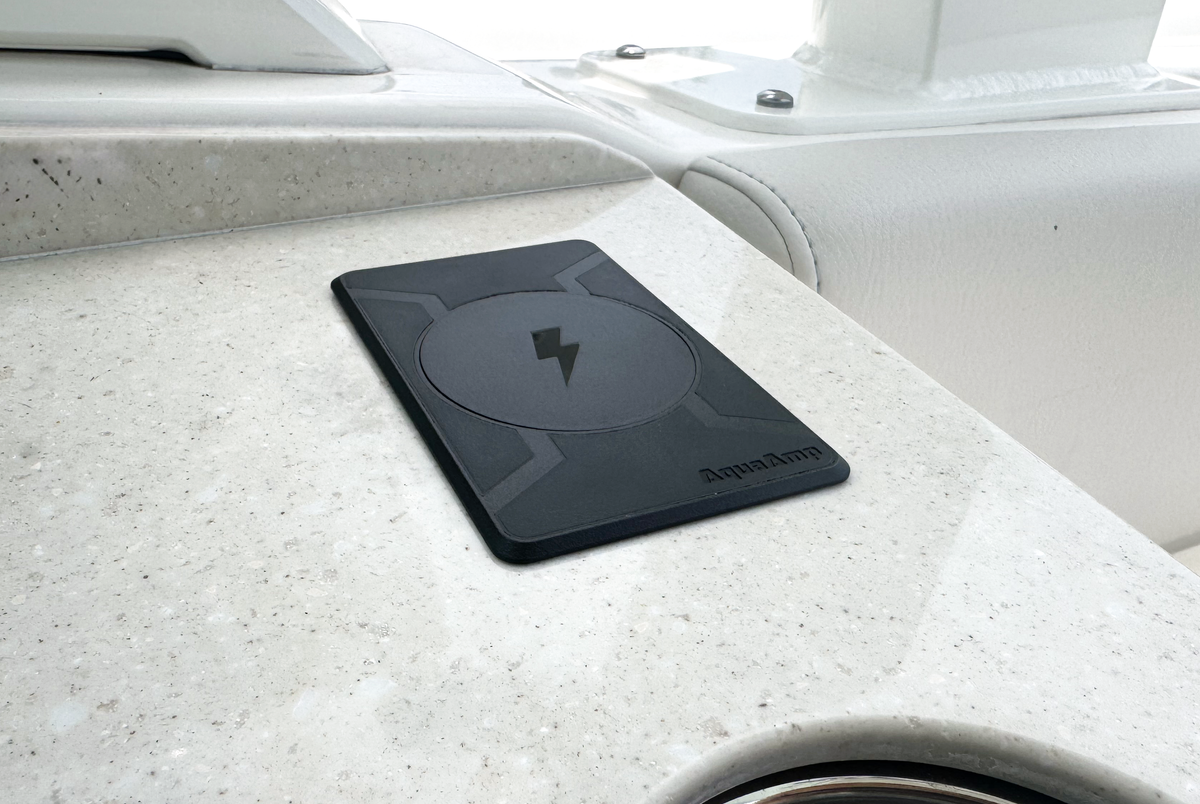

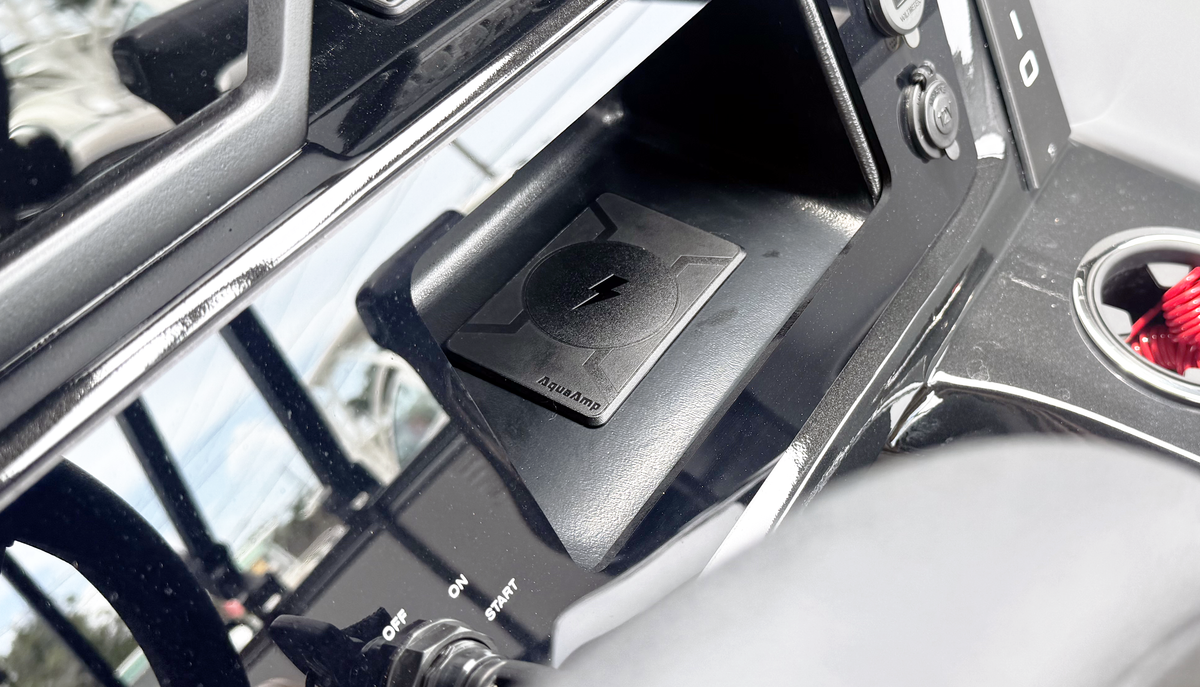

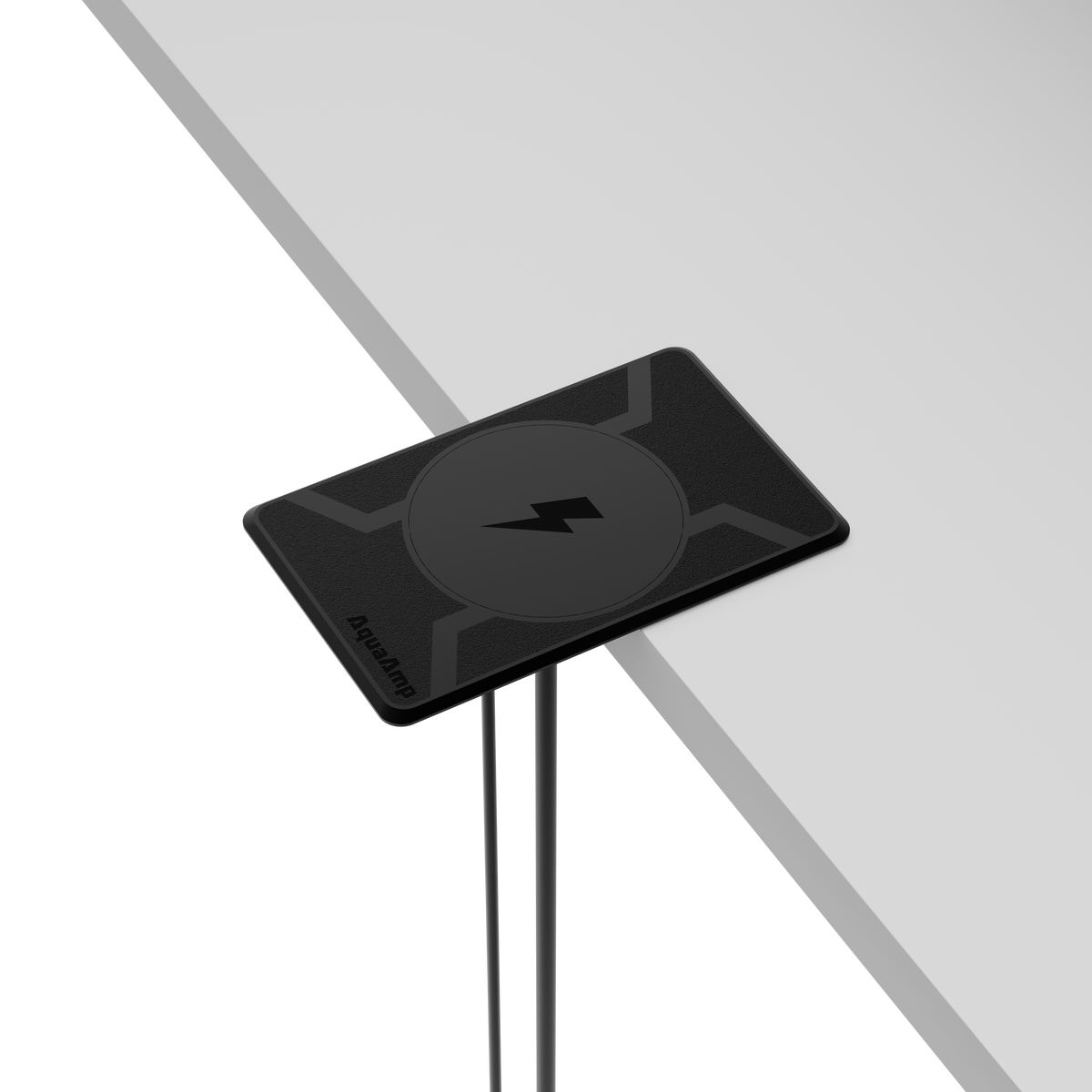

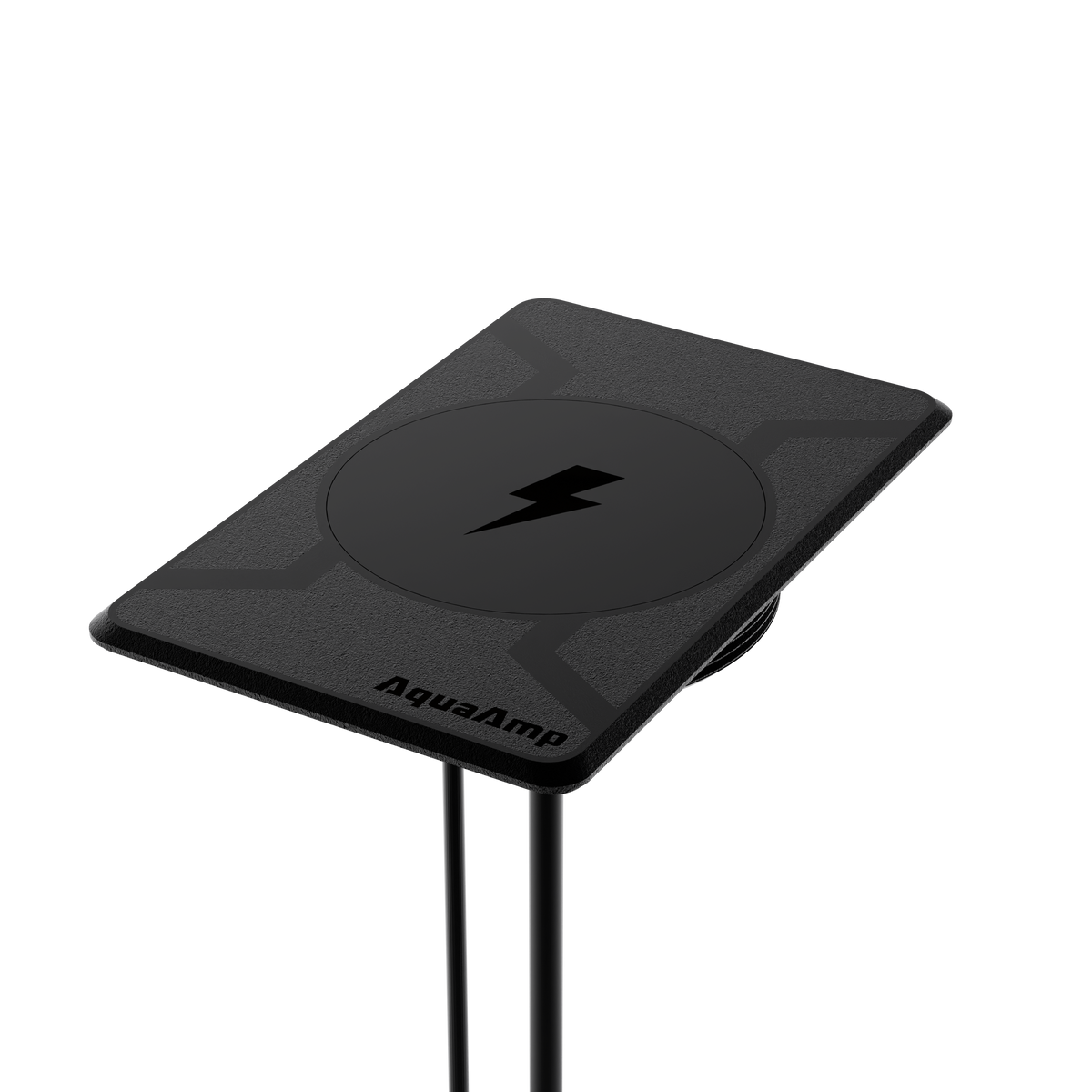

Surface mounted rectangular charging pad with grippy rubber texture and strong magnetic alignment.
Specs:
- IPX7 Waterproof
- 12v Input
- 15W Output (Qi2-Certified)
- Output Status Indicator Signal (3.3v @ 15mA)

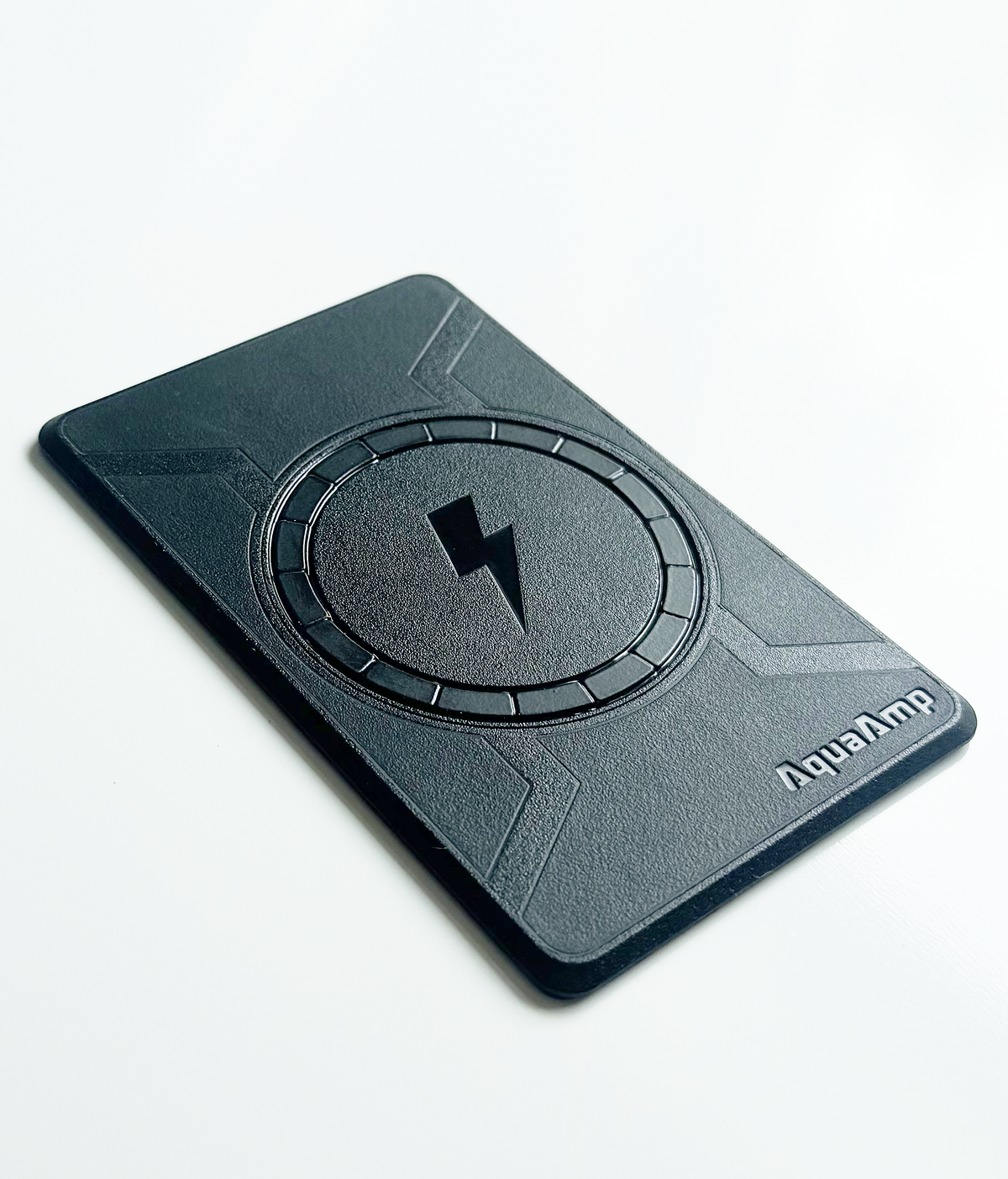

- Grippy rubber texture
- Embedded orientation magnets (top and bottom)
- Patent Pending
Digital output wire can be optionally used to drive a status LED or communicate with external systems such as vehicle ECU.

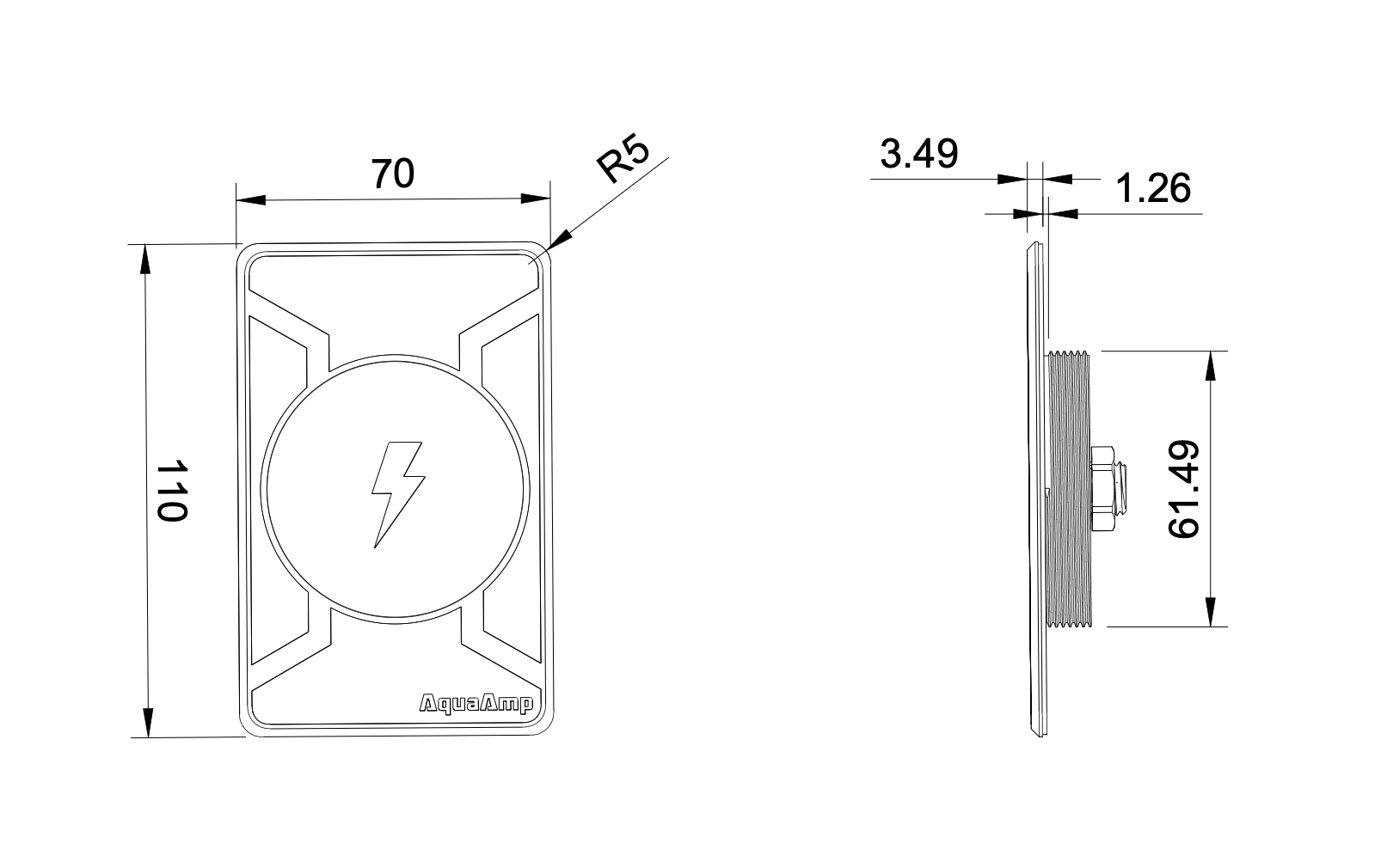

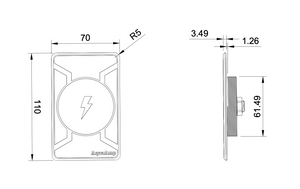

Dimensions: 70 mm (W) × 110 mm (H) × 14 mm (D)
