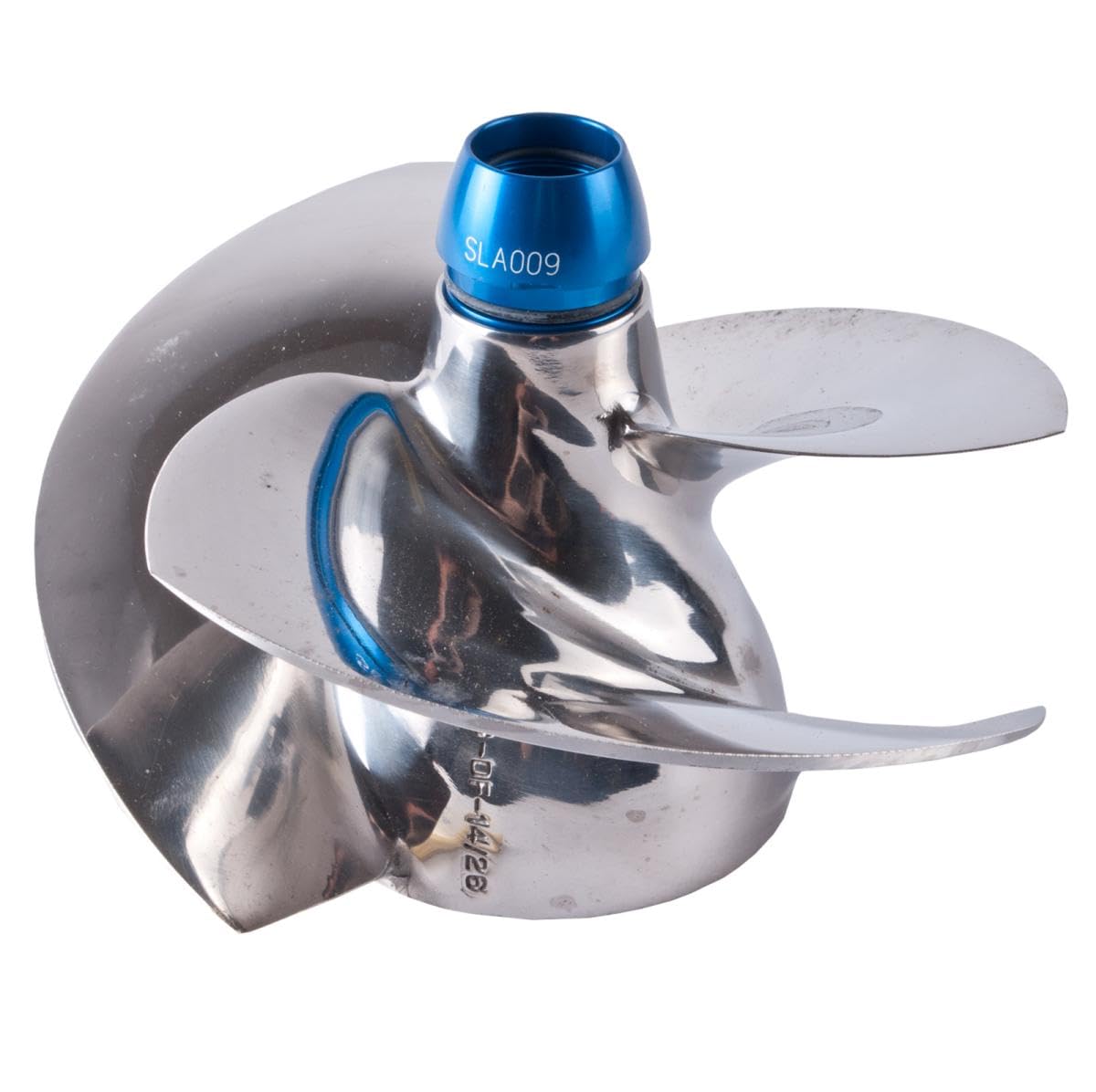

Solas Dynafly Series Impeller compatible with Kawasaki 1200 STX-R 2002-05

Dynafly Maximum Acceleration Impeller.
Designed to give high-compression ratio pumps stronger acceleration with less cavitation, providing your PWC an incredible performance boost.
Compatible with Kawasaki Ultra 150 pump, Sea-Doo 951 pump, and other pumps — please check the application chart for details.

• 2002 Kawasaki 1200 STX-R
• 2003 Kawasaki 1200 STX-R
• 2004 Kawasaki 1200 STX-R
• 2005 Kawasaki 1200 STX-R

Solas Impellers carry a 1-year warranty against manufacturer defects.

1. Remove and separate the whole jet pump from the PWC.
2. Remove the trail cone (or cap) from the stator.
3. Hold the rear end of the shaft with a bench vise and remove the impeller with an impeller wrench (turn counter-clockwise).
4. Inspect threads on shaft and impeller for debris or damage. Apply grease or anti-seize before installation.
5. Screw the impeller by hand carefully; tighten with impeller wrench. If tight or misthreaded, unscrew, clean, and check thread.
6. Assemble the pump and reinstall on the PWC.

*Installation guide is for reference only; refer to your original service manual or PWC dealer for details. *Some wrenches are optional and available for purchase.

• KA Super Camber (ABC/IJK Series) — Wrench: WR001 — Seal: SLA009
• KB Super Camber (ABC Series) — Wrench: WR002 — Seal: SL002
• KC Super Camber (ABC Series) — Wrench: WR005 — Seal: Original
• KD Super Camber (ABC Series) — Wrench: WR001 — Seal: SLA009
• KE Super Camber (ABC/IJK Series), Xprop/Concord Series, KP Concord/Dynafly Series — Wrench: WR001 — Seal: SLA009
• KF Super Camber (IJK Series), XProp Series — Wrench: WR001 — Seal: SLA009
• KG Xprop/Concord Series — Wrench: WR001 — Seal: SLA009
• KH Dynafly Series — Wrench: WR001 — Seal: SL007
• KX Concord Series — Wrench: WR001 — Seal: SLA009
