Kawasaki Piston Ring Set 750/1100 750 SS/Super Sport/XiR/ST/750 Sxi/750 ZXI/STS

700SB213-Standard

Size

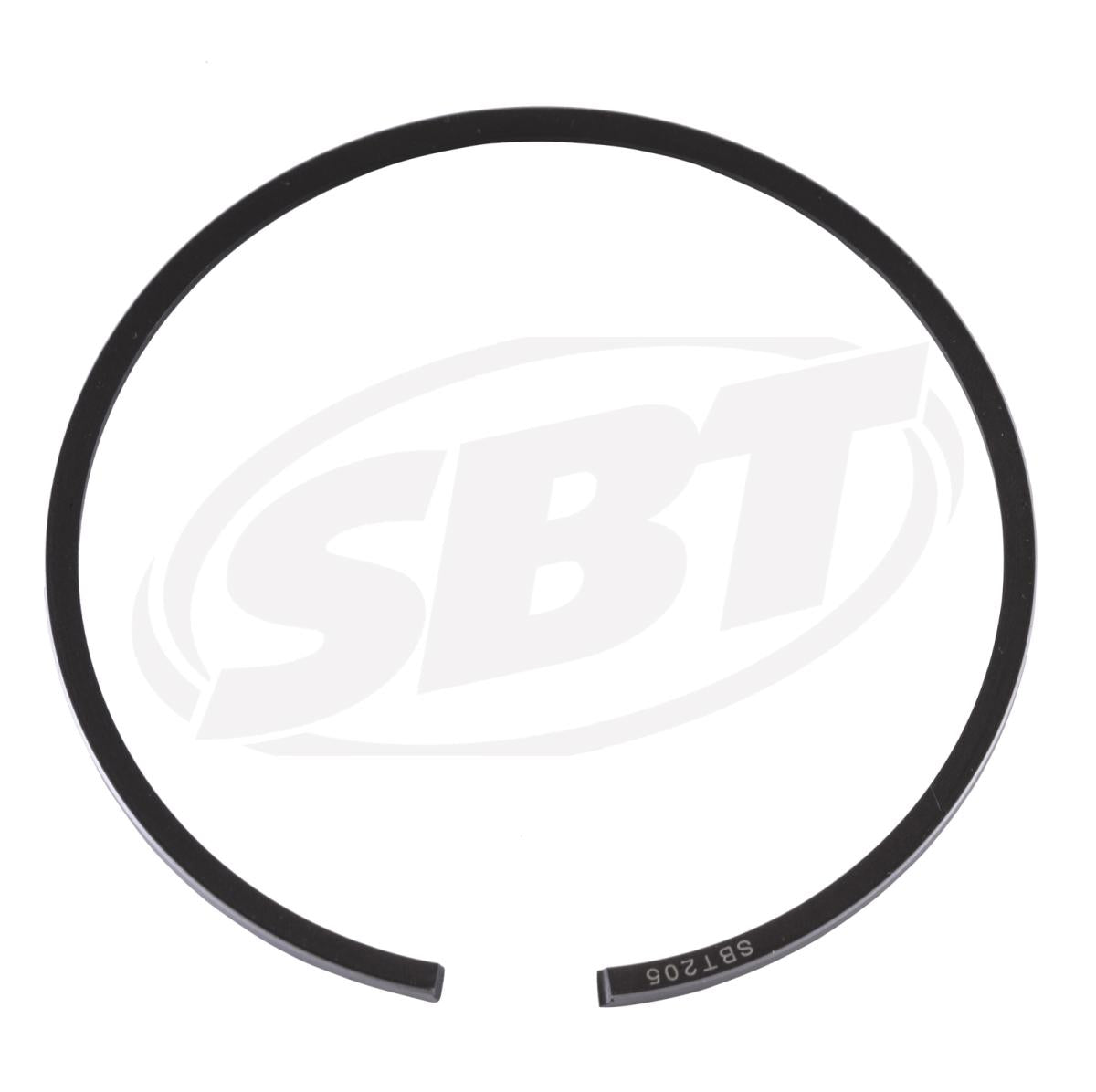

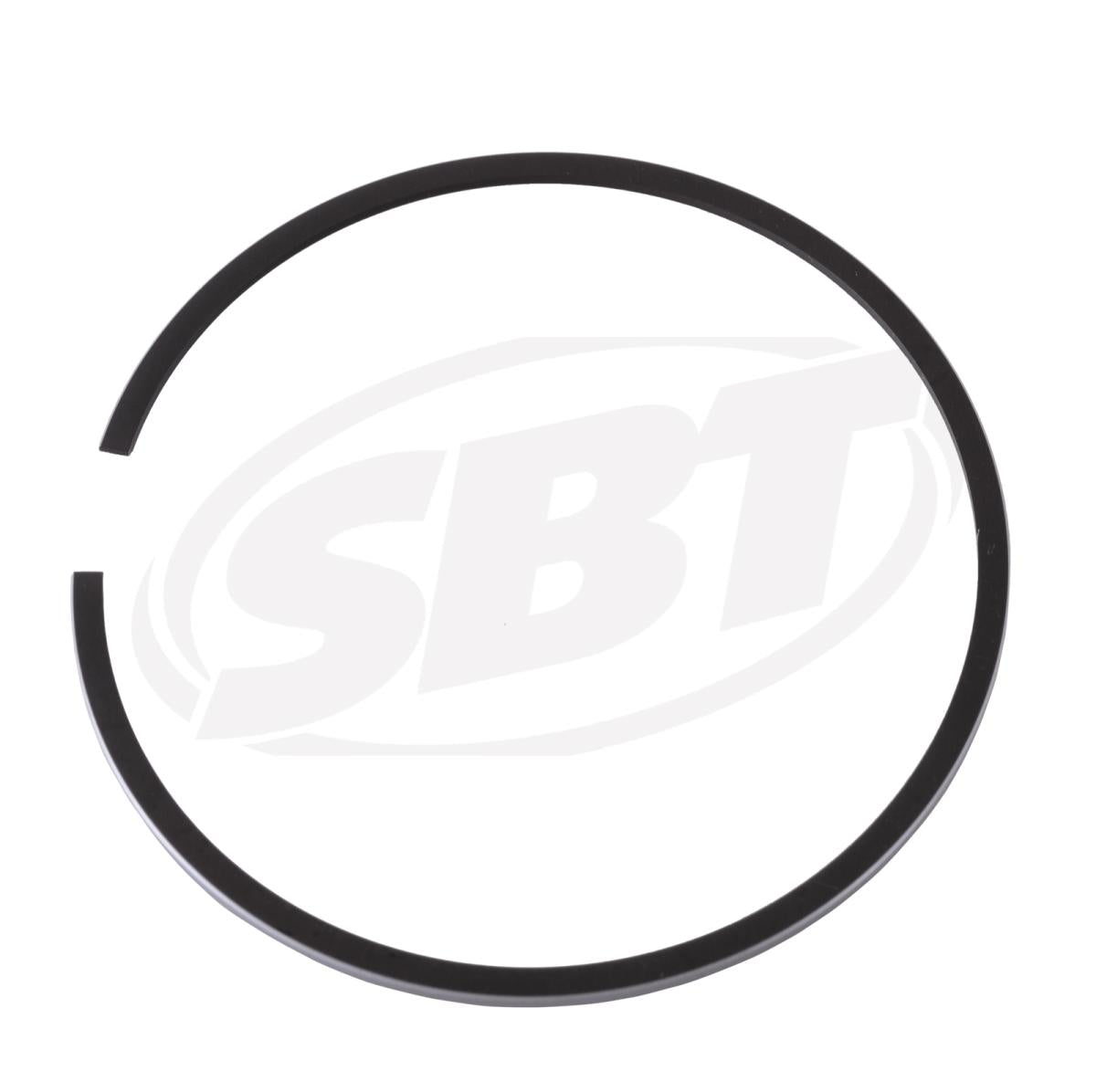

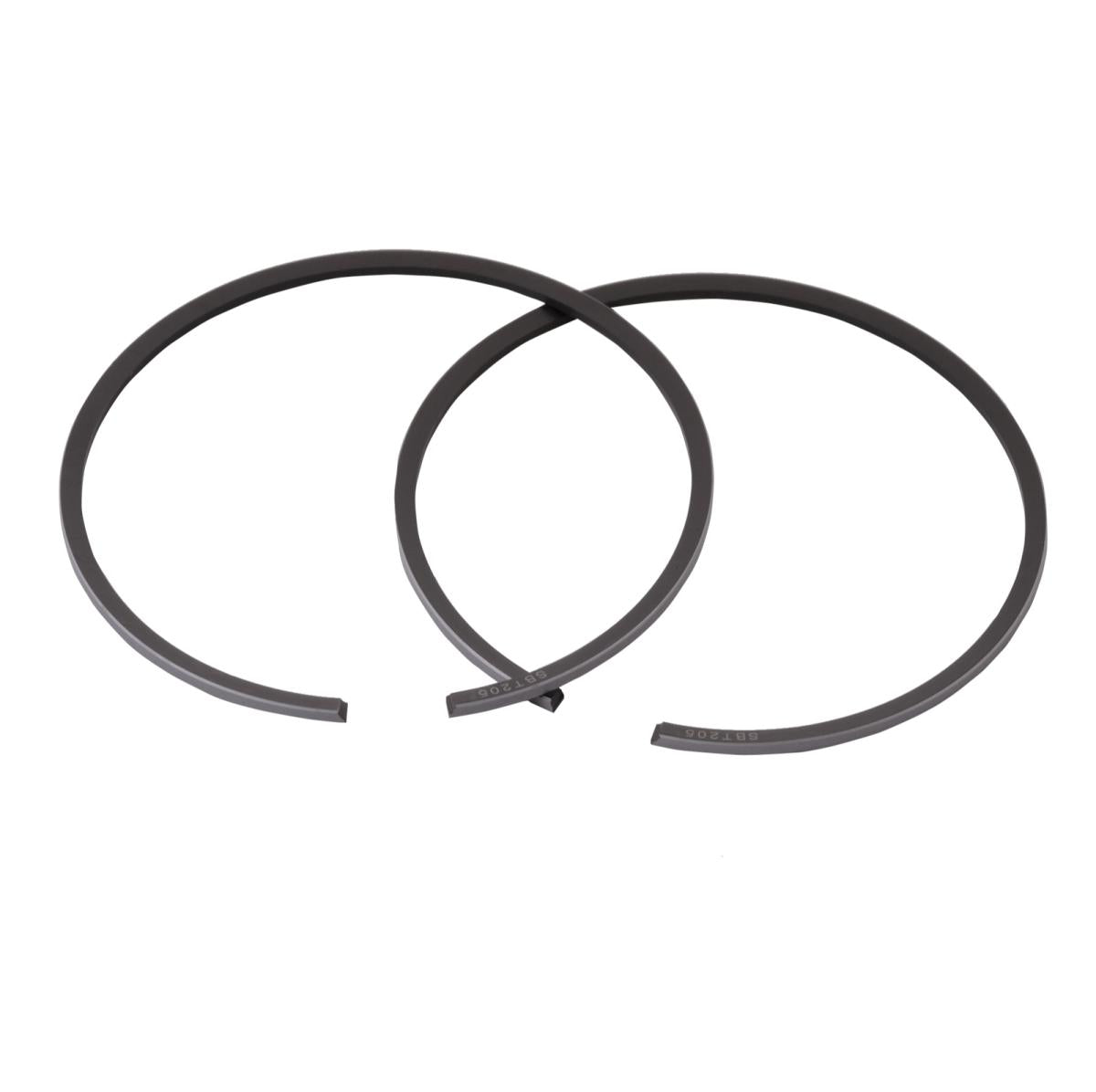

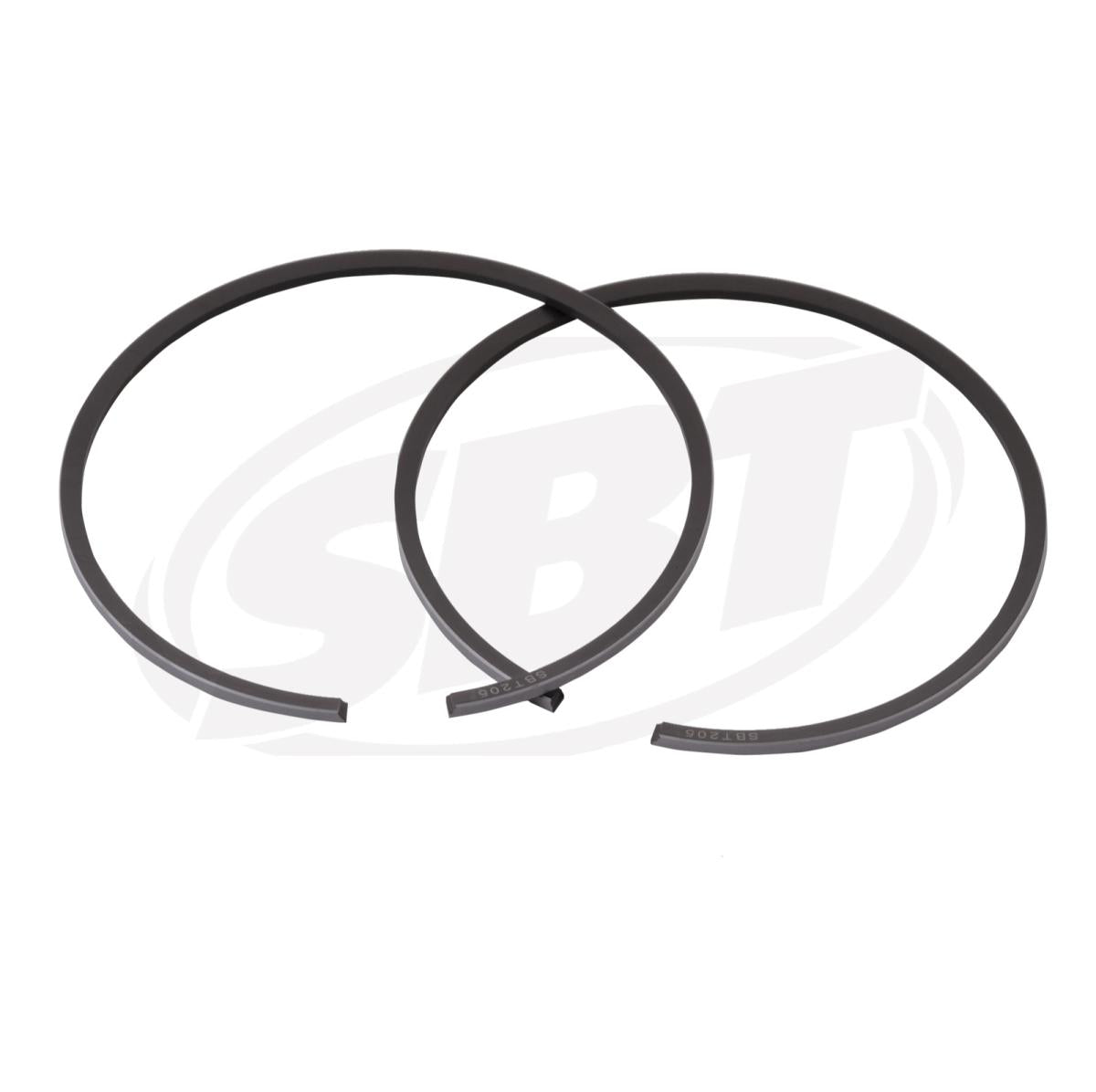

New set of rings.
1992 Kawasaki 750 SS Rings
1993 Kawasaki 750 SS Rings
1994 Kawasaki 750 SS Rings
1995 Kawasaki 750 SS Rings

1993 Kawasaki Super Sport XI
1994 Kawasaki Super Sport XI
1995 Kawasaki Super Sport XI

1994 Kawasaki XiR Rings
1994 Kawasaki ST Rings

1995 Kawasaki ST Piaston
1995 Kawasaki 750 Sxi Rings
1995 Kawasaki 750 ZXI Rings
1995 Kawasaki STS Rings

1996 Kawasaki 1100 ZXI Rings
1996 Kawasaki 750 Sxi Rings
1996 Kawasaki 750 ZXI Rings
1996 Kawasaki SS Rings
1996 Kawasaki STS Rings
1996 Kawasaki Super Sport XI Rings

1997 Kawasaki 1100 STX Rings
1997 Kawasaki 1100 ZXI Rings
1997 Kawasaki 750 Sxi Rings
1997 Kawasaki 750 ZXI Rings
1997 Kawasaki SS Rings
1997 Kawasaki STS Rings
1997 Kawasaki Super Sport XI Rings

1998 Kawasaki 1100 STX Rings
1998 Kawasaki 1100 ZXI Rings
1998 Kawasaki 750 STX Rings
1998 Kawasaki SXI PRO Rings
1998 Kawasaki Xi Sport Rings

1999 Kawasaki 1100 STX Rings
1999 Kawasaki 1100 ZXI Rings
1999 Kawasaki SXI PRO Rings
1999 Kawasaki Xi Sport Rings

2000 Kawasaki 1100 ZXI Rings
2000 Kawasaki SXI PRO Rings

2001 Kawasaki 1100 ZXI Rings
2001 Kawasaki SXI PRO Rings

2002 Kawasaki 1100 ZXI Rings
2002 Kawasaki SXI PRO Rings

2003 Kawasaki 1100 ZXI Rings
Piston to Cylinder Clearance:
The piston size plus the clearance equals the final bore size. For the recommended clearances by make and model, see Table 1. The cylinder first should be bored to within 0.002” of the final bore size. The remaining 0.002” should be removed with a 400 grit cylinder hone. The honing process should be controlled such as to leave a 45 degree crosshatch pattern on the cylinder wall.

Port Chamfering:
Once the cylinder is honed to the final size, all of the ports in the cylinder wall should be chamfered with a file or chamfer tool. The chamfered edge should be cut at approximately a 30 degree angle around the entire port. The cylinder should then be honed with a 400 grit flex hone to apply a uniform finish and to re-establish the 45 degree cross-hatch pattern.

Cylinder Cleaning Process:
Clean cylinders in warm soapy water using a firm plastic brush (such as a tooth brush), then dry, and immediately lubricate with 2-stroke oil. Honing grit tends to reside in the crosshatch and must be scrubbed out. An extremely clean cylinder free of grit is critical in order to avoid “drag marks” and other damage to the cylinder wall after assembly.

Setting the Ring Cap:
Place the piston ring in the cylinder. Use the piston to push the ring approximately 5mm from the top of the cylinder in order to square the ring in the cylinder. Use a feeler gauge to measure the gap between the ends of the ring. If the gap is too small, one end of the ring must be filed. Re-install the ring and measure again to confirm the final dimension. Recommended ring gap clearances are shown in Table 2.


Piston Installation:
Install the base gasket (we recommend Threebond 1211 as a gasket treatment). Lubricate the wrist pin bearing with 2-stroke oil and install the piston on the connecting rod. The designation mark on the piston crown points in the direction as shown in Table 3. Install the c-clips with the open end in either the 6 or 12 o'clock position. Install the rings onto the piston. Using your hands or a ring compressor, collapse the rings into the ring grooves and install the cylinder. Torque cylinder to proper torque specifications.

Table 1: Piston to Cylinder Clearance

Clearance

Application

2 Stroke



.004”-.005”

Kawasaki 440, 550, 650, 750, 900, 1100
Yamaha 500, 650, 701, 760, 1100, 1200

.0045”-.0055”

Yamaha 800, 1200pv, 1300

.005”-.006”

Seadoo 580, 650, 720, 800
Polaris 650, 750, 780, 900
Kawasaki 1200

.007”-.008”

Polaris 700, 1050 Seadoo 951, 800 RFI

4 Strokes

.001”-.0022”

Seadoo 112 (N/A)

.002”-.004”

Seadoo 113 (S/C)

.002”-.003”

Yamaha 408, 410, 411

.0015”-.0025”

Kawasaki 213, 214

.0005”-.0015”

Honda 600, 601



Table 2: Ring End Gap

Clearance/Tolerance

Application

2 Strokes



.011” +/- .003”

Kawasaki 1100

.012” +/- .002”

Seadoo 800

.012”+/- .004”

Kawasaki 440, 550, 650
Yamaha 500, 650, 701, 760, 1100, 1200, 800,1200pv
Tigershark 640, 770, 1000

.013” +/- .003”

Seadoo 580, 650, 720
Kawasaki 750, 900, 1200

.013” +/- .005”

Polaris 650, 700, 750, 780

.014” +/- .004”

Polaris 900, 1050

.019” +/- .001”

Tigershark 900

.022” +/- .003”

Seadoo 951/DI

4 Strokes



.015”-.021”

Yamaha FX Top Ring

.019”-.027”

Yamaha FX Middle Ring

.011”-.023”

Yamaha FX Oil Ring

.013”-.017”

Yamaha VX/FXHO Top Ring

.017”-.023”

Yamaha VX/FXHO Middle Ring

.004”-.014”

Yamaha VX/FXHO Oil Ring

.006”-.014”

Seadoo Top Ring/Middle Ring

.006”-.012”

Seadoo Oil Ring

.010”-.016”

Kawasaki Top Ring

.016”-.022”

Kawasaki Middle Ring

.016”-.023”

Kawasaki Oil Ring

.007”-.013”

Honda Top Ring

.016”-.022”

Honda Middle Ring

.010”-.030”

Honda Oil Ring


Table 3: Piston Arrow Direction





Make

Engine

Marking

Position

Seadoo

All

Arrow

Towards exhaust

Kawasaki

All (except 4-stroke)

Arrow

Towards Exhaust

Kawasaki

4-strokes

Dot

Towards exhaust

Polaris

650, 750, 780

Arrow

Towards front

Polaris

700, 900, 1050

Arrow

Towards exhaust

Yamaha

500

“UP”

Towards front

Yamaha

All others

Arrow

Towards exhaust

Tigershark

640, 1000

Arrow

Towards exhaust

Tigershark

770, 900

Dot

Towards exhaust

Honda

4-strokes

In

On the intake side
