Block off Kits are ONLY for carbureted applications. It is not possible to pre-mix a fuel injected ski, as the injectors will clog.

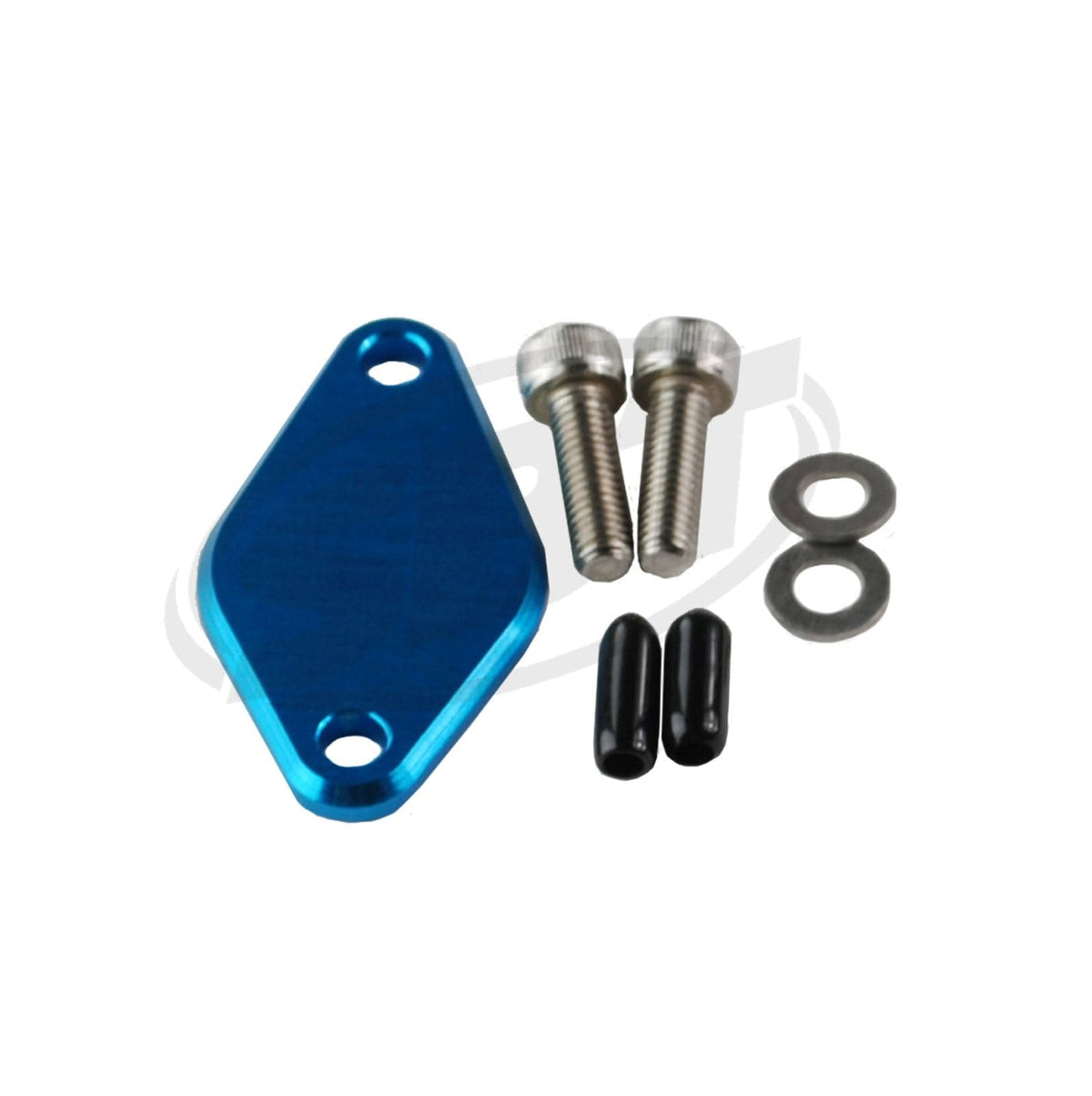

Oil Pump Block-Off Kit for Sea-Doo 787, 951, Tigershark 640, 770
Tigershark 640, 770
1993 Daytona 640
1993 Tigershark 640
1994 Barracuda 640
1994 Daytona 640
1994 Monte Carlo 640
1994 Montego 640
1994 Montego Deluxe 640
1995 Barracuda 640
1995 Daytona 640
1995 Monte Carlo 640
1995 Montego 640
1995 Montego Deluxe 640
1996 Daytona 770
1996 Monte Carlo 640
1996 Monte Carlo 770
1996 Montego 640
1996 Montego Deluxe 640
1997 Daytona 770
1997 Monte Carlo 640
1997 Monte Carlo 770
1997 Montego 640
1997 Montego Deluxe 640
1998 TS 640
1998 TS 770
1998 TS-L 640
1998 TS-L 770
1998 TS-R 770
1999 TS 640
1999 TS 770
Sea-Doo 787, 951
1995 XP 800
1996 GSX
1996 GTX
1996 XP
1997 GSX
1997 GTX
1997 SPX
1997 XP
1998 GSX Limited
1998 GTX Limited
1998 SPX
1998 XP Limited
1999 GSX Limited
1999 GTX Limited
1999 SPX
1999 VSP-L
1999 XP Limited
2000 GTX
2000 LRV
2000 RX
2000 VSP-L
2000 XP
2001 GTX
2001 LRV
2001 RX
2001 RX X
2001 VSP-L
2001 XP
2002 GTX
2002 RX
2002 VSP-L
2002 XP
2003 VSP-L
1996 Challenger
1997 Challenger
1997 Challenger 1800
1998 Challenger
1998 Challenger 1800
1998 Speedster
1999 Challenger 1800
1999 Speedster
2000 Sportster LE
2001 Sportster LE
2002 Sportster LE
2003 Sportster LE
The following is a general guide covering most PWC models.
First, remove the oil pump. With the pump removed, you have to cover the hole where the oil pump was; you do this with a block off plate.
Install the plate with the gasket, O-ring or silicone to seal it (whichever was OE).
Next, block off the oil feed lines (these are the lines that run from the oil pump to the intake manifold/carbs/flame arrestor). There are a couple ways to do this. First you could leave the lines attached to the manifold, cut the lines and put screws in the end with a cable tie. Second you could use the little block off caps that may come with the plate.
Remember you just got rid of your oil pump and put oil in the fuel, but you do not have premix fuel in the fuel lines. It's a good idea to squirt some oil down the carburetors then start the watercraft on the flush kit and let it idle for about 15 minutes. This allows the un-mixed fuel to clear the lines.
