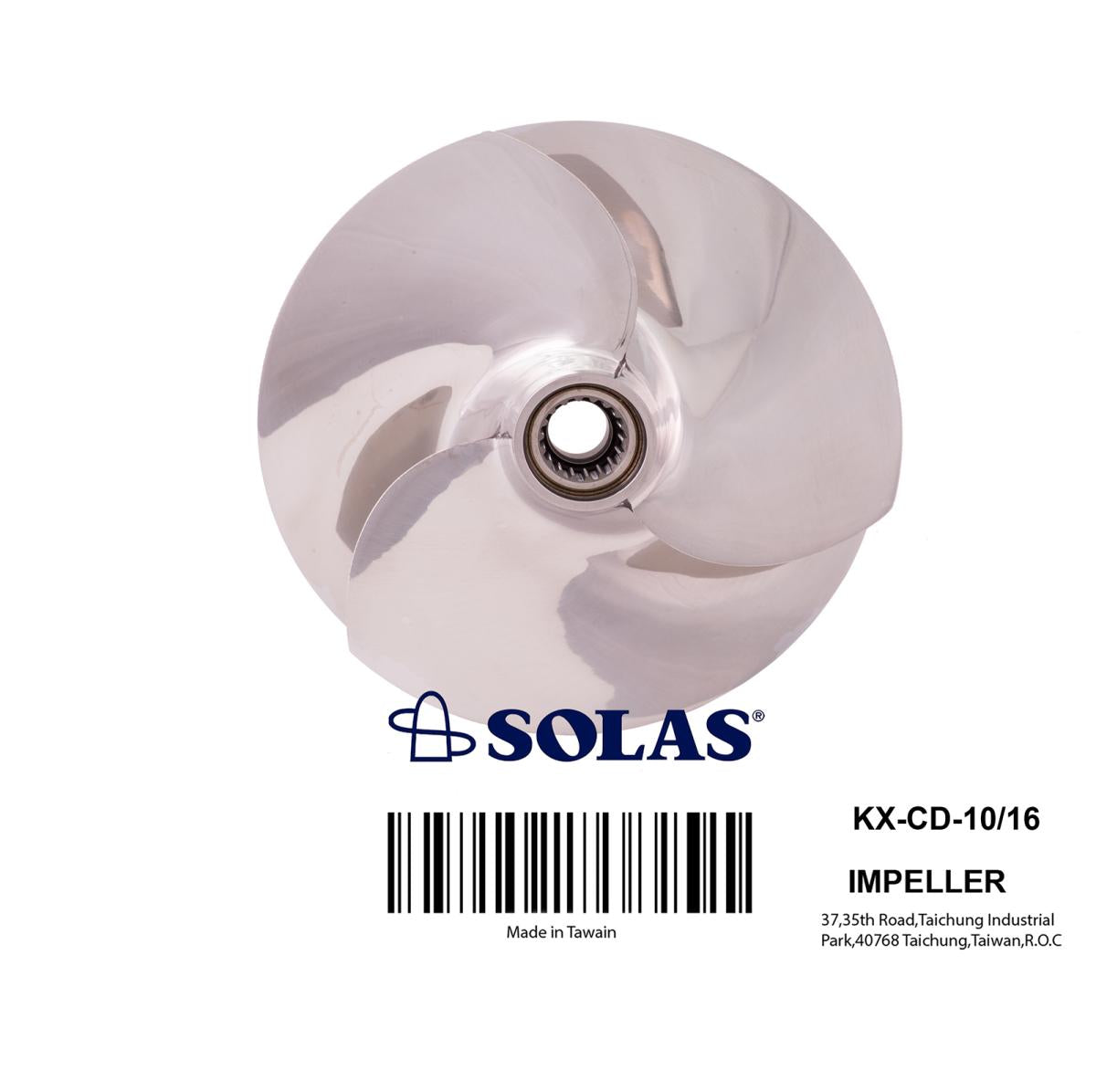

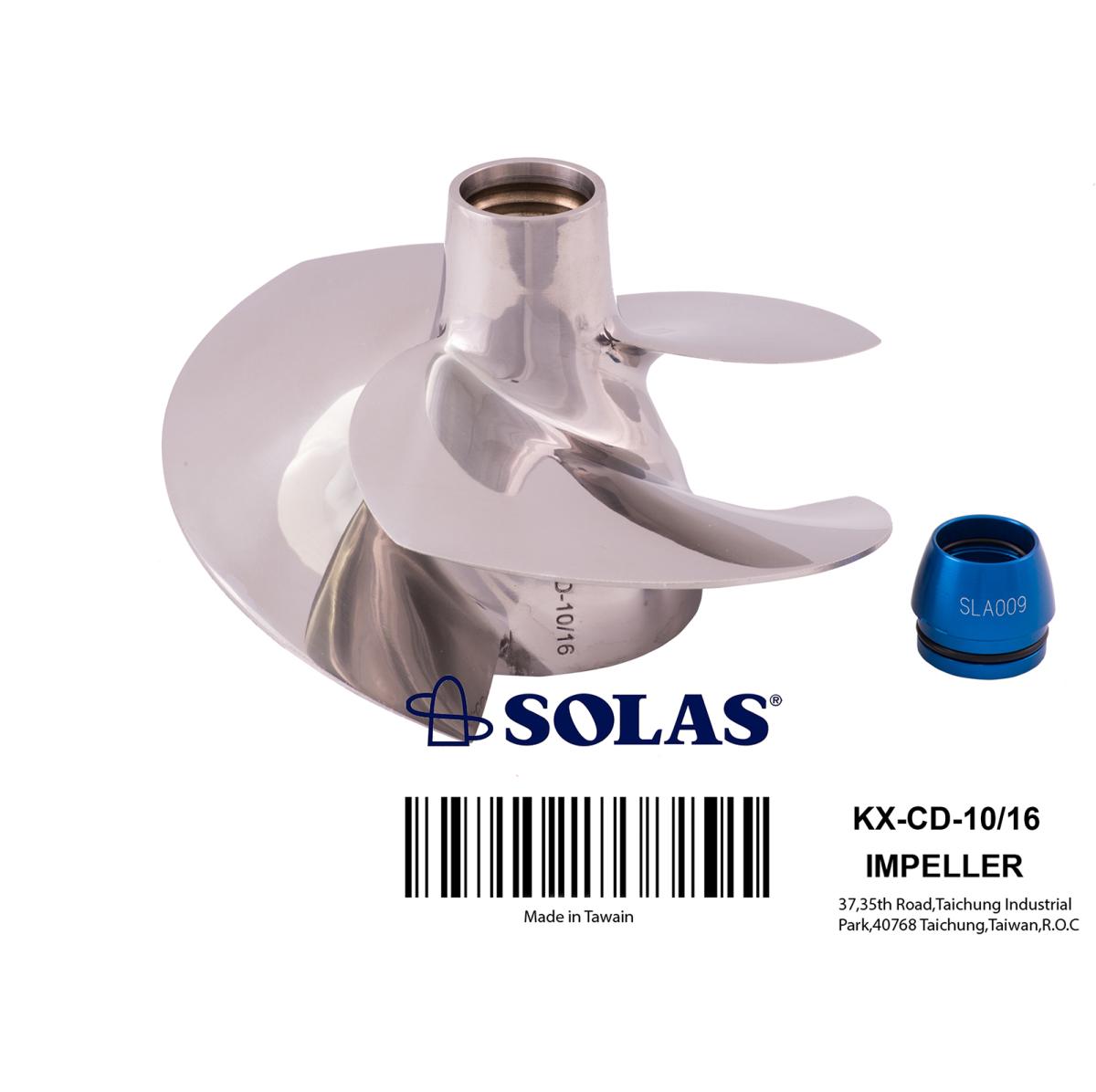

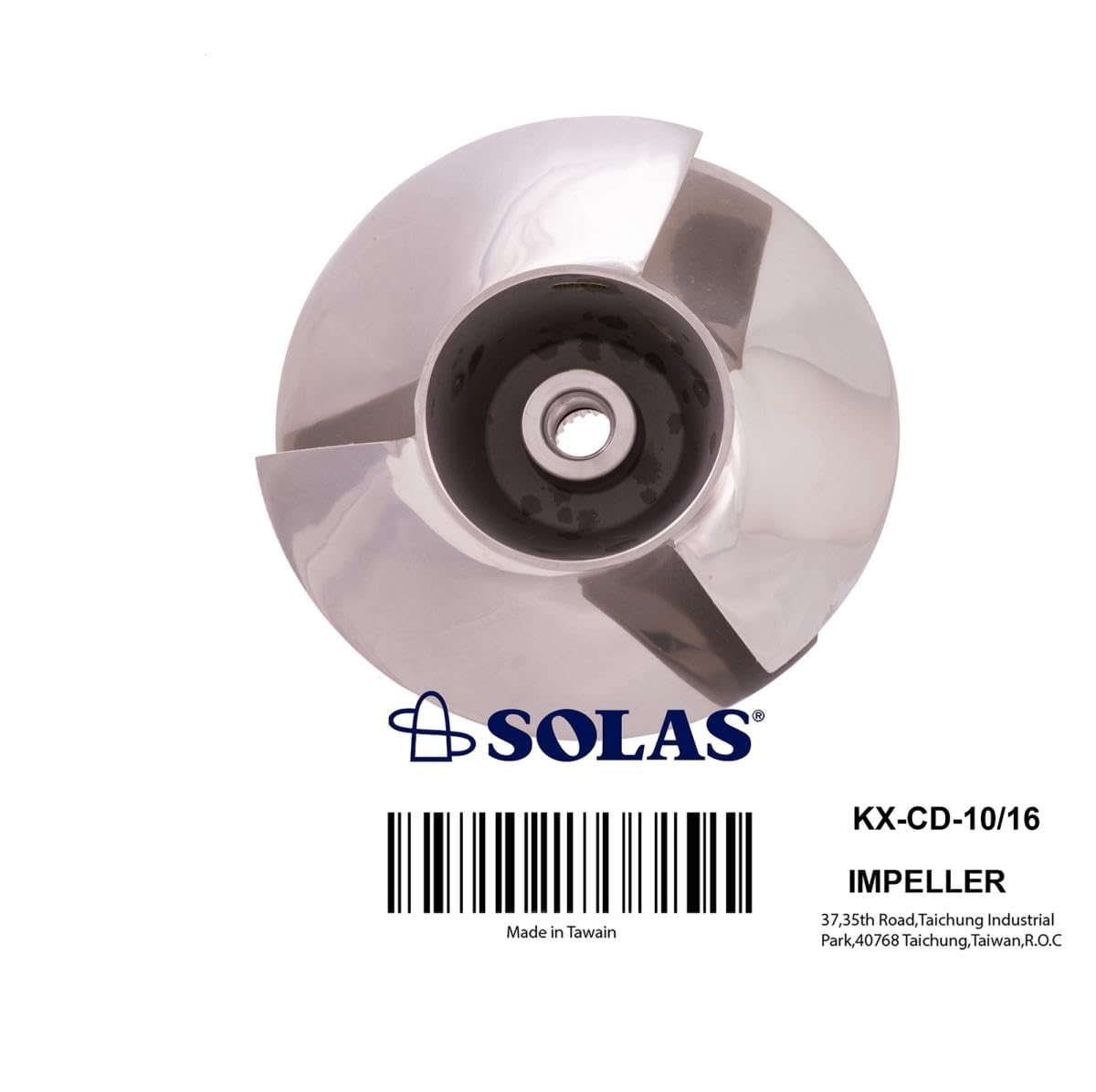

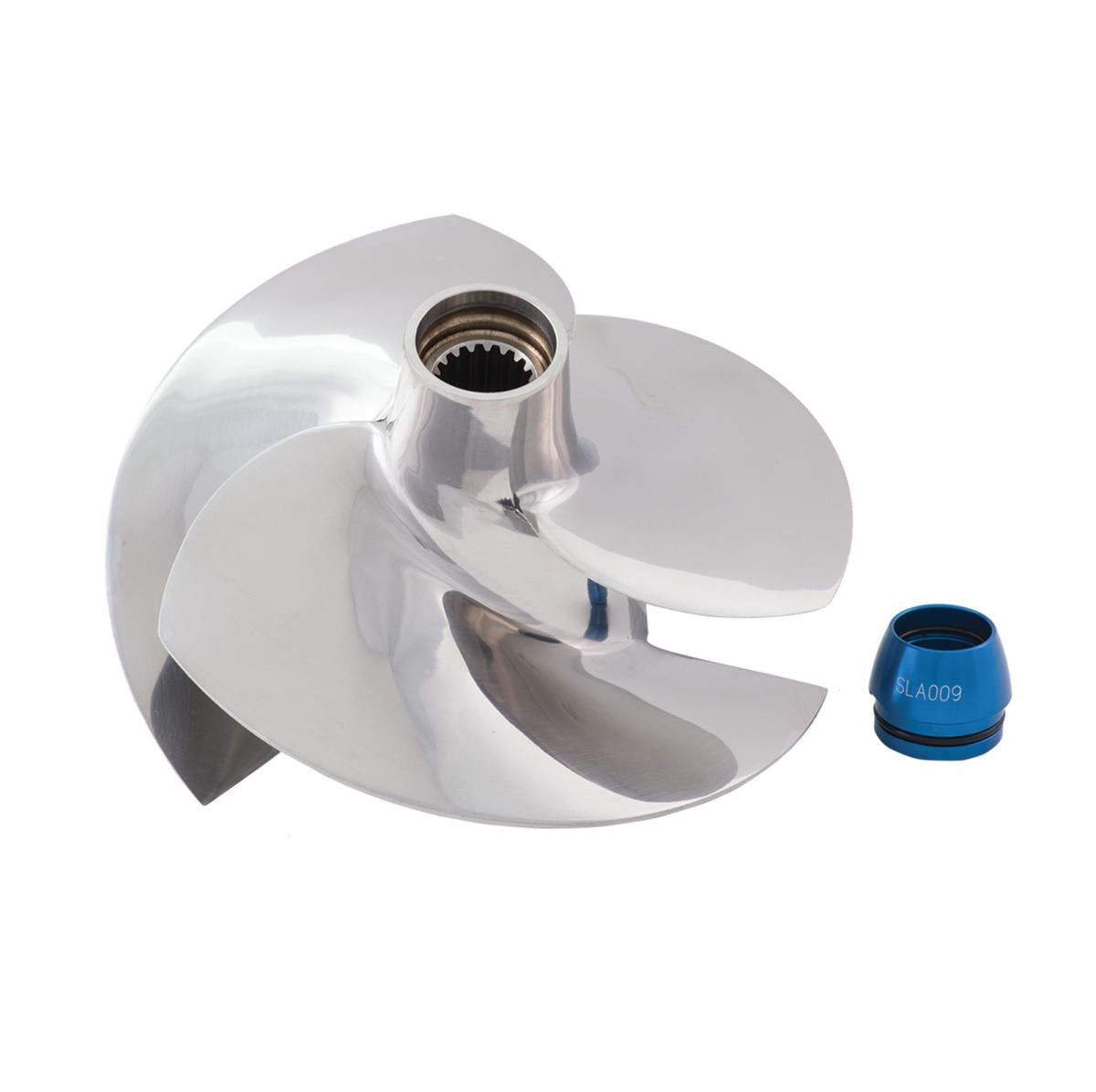

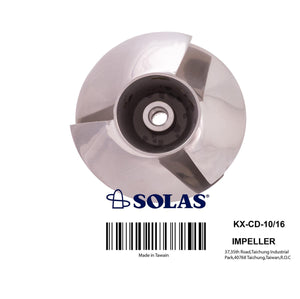

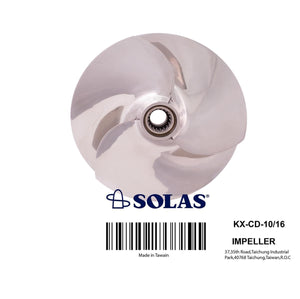

Solas Concord Series Impeller compatible with Kawasaki Ultra LX 2008-2015

SKU: 607SO046

SPECIAL ORDER ONLY — SOLAS Concord Power Torque Series impeller designed for remarkable thrust and extraordinary efficiency.
Features a large blade area with a unique geometric blade design and radial leading edge to enhance four-stroke engine characteristics.
Delivers incredible acceleration, strong mid-range torque, and excellent top-end performance for applications ranging from water skiing to high-speed cruising.

  • Ultra LX 2008–2015
  • 2008 Kawasaki Ultra LX
  • 2009 Kawasaki Ultra LX
  • 2010 Kawasaki Ultra LX
  • 2011 Kawasaki Ultra LX
  • 2012 Kawasaki Ultra LX
  • 2013 Kawasaki Ultra LX
  • 2014 Kawasaki Ultra LX
  • 2015 Kawasaki Ultra LX

Solas Impellers carry a 1-year warranty against manufacturer defects.

  • Remove and separate the complete jet pump from the PWC.
  • Remove the trail cone (or cap) from the stator.
  • Secure the rear end of the shaft with a bench vise and remove the impeller using an impeller wrench (counter-clockwise).
  • Inspect threads on shaft and impeller for debris or damage; apply grease or anti-seize before installation.
  • Thread the impeller on by hand carefully, then tighten with the impeller wrench.
  • Reassemble the pump and reinstall it on the PWC.

*Installation guide is for reference only. Always consult your OEM service manual or PWC dealer.
*Guide provided by Solas. Some wrenches are optional and sold separately.

Impeller Series

Wrench

Seal

HA Concord Series

WR001

SLA010

PL Super Camber (ABC/IJK Series)

WR006

SL006

PA Super Camber (ABC/IJK Series)
Xprop/Concord Series

WR006

SL006, SL012

PF Concord Series

WR006

SL009
