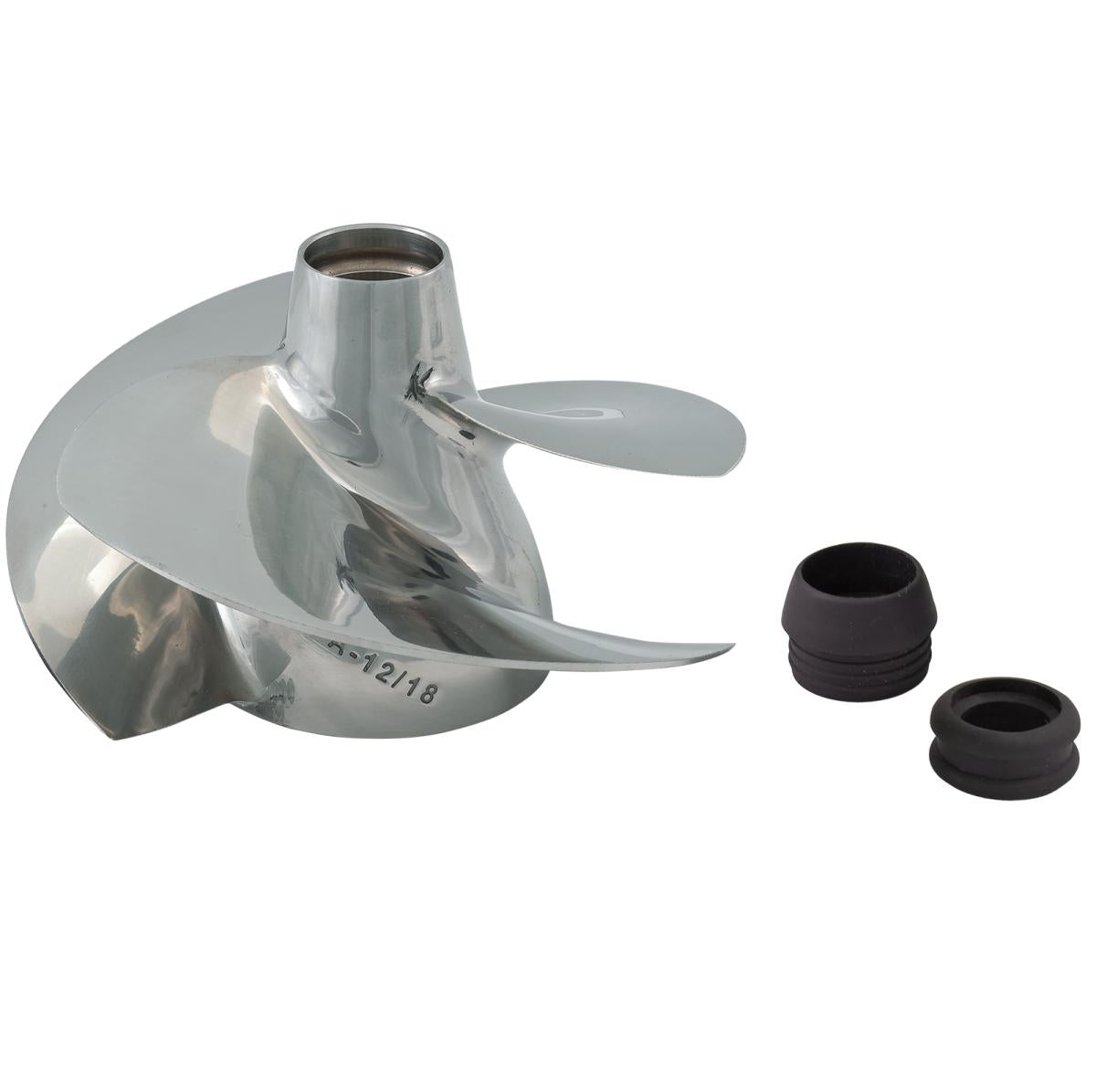

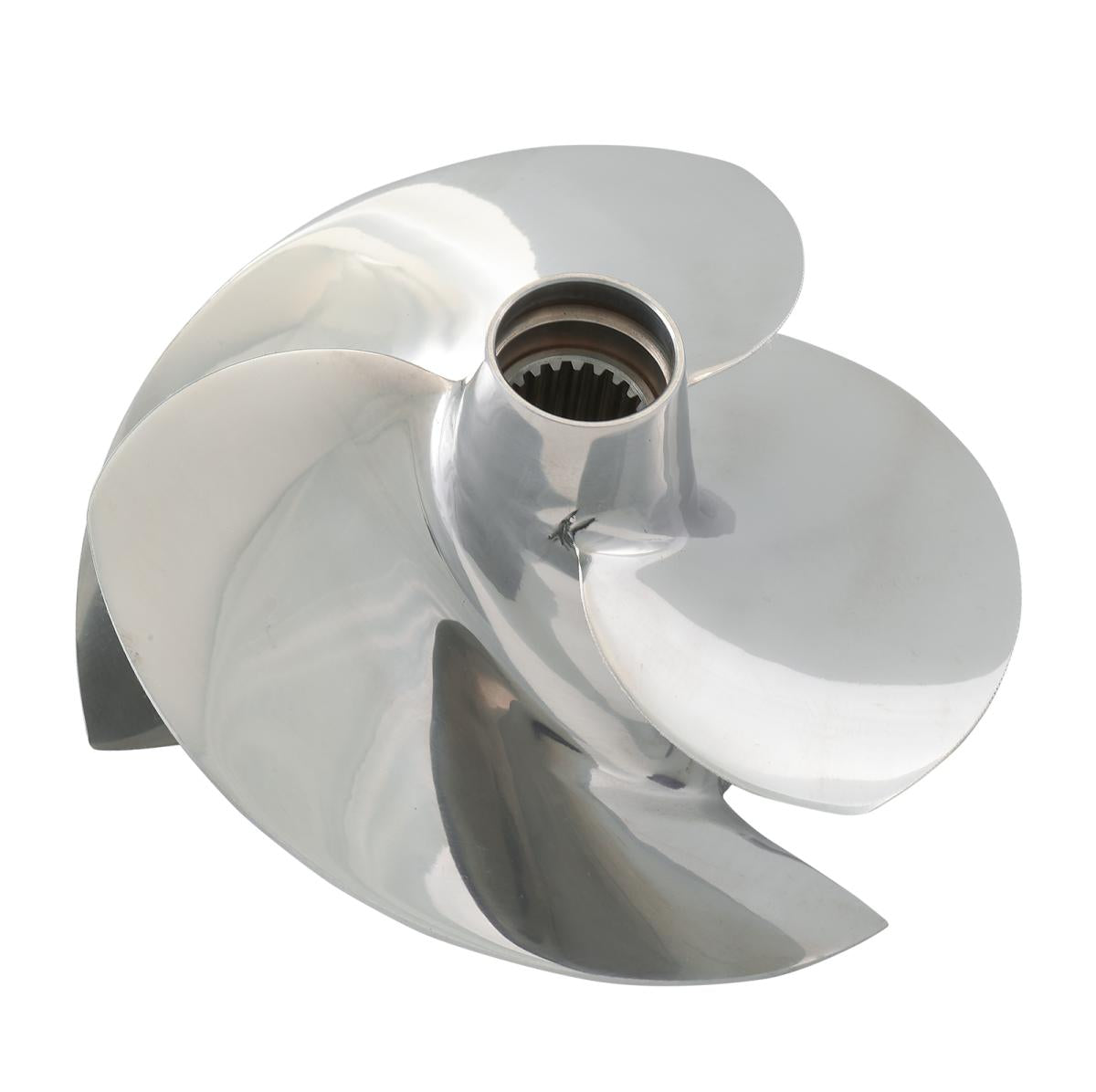

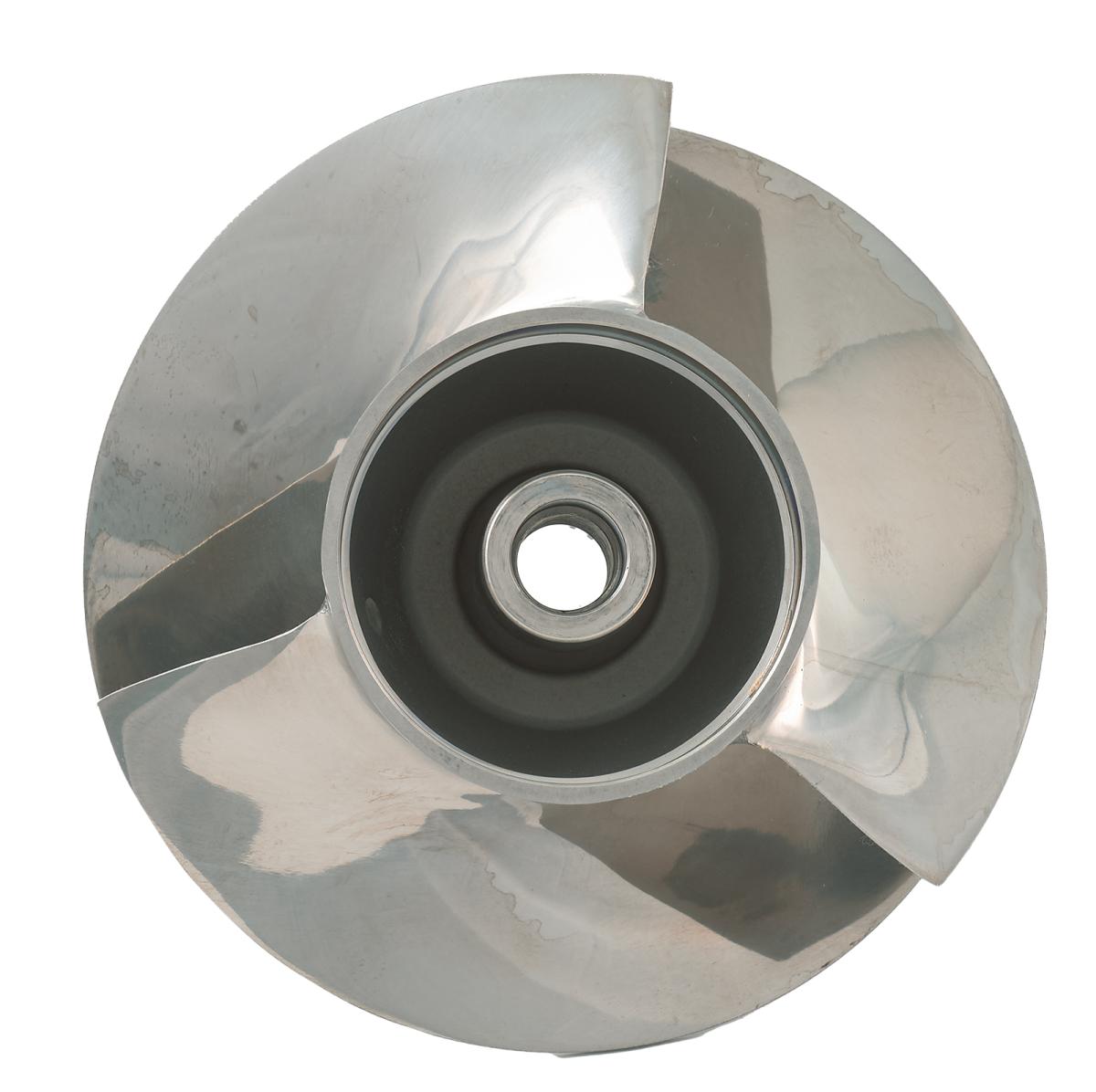

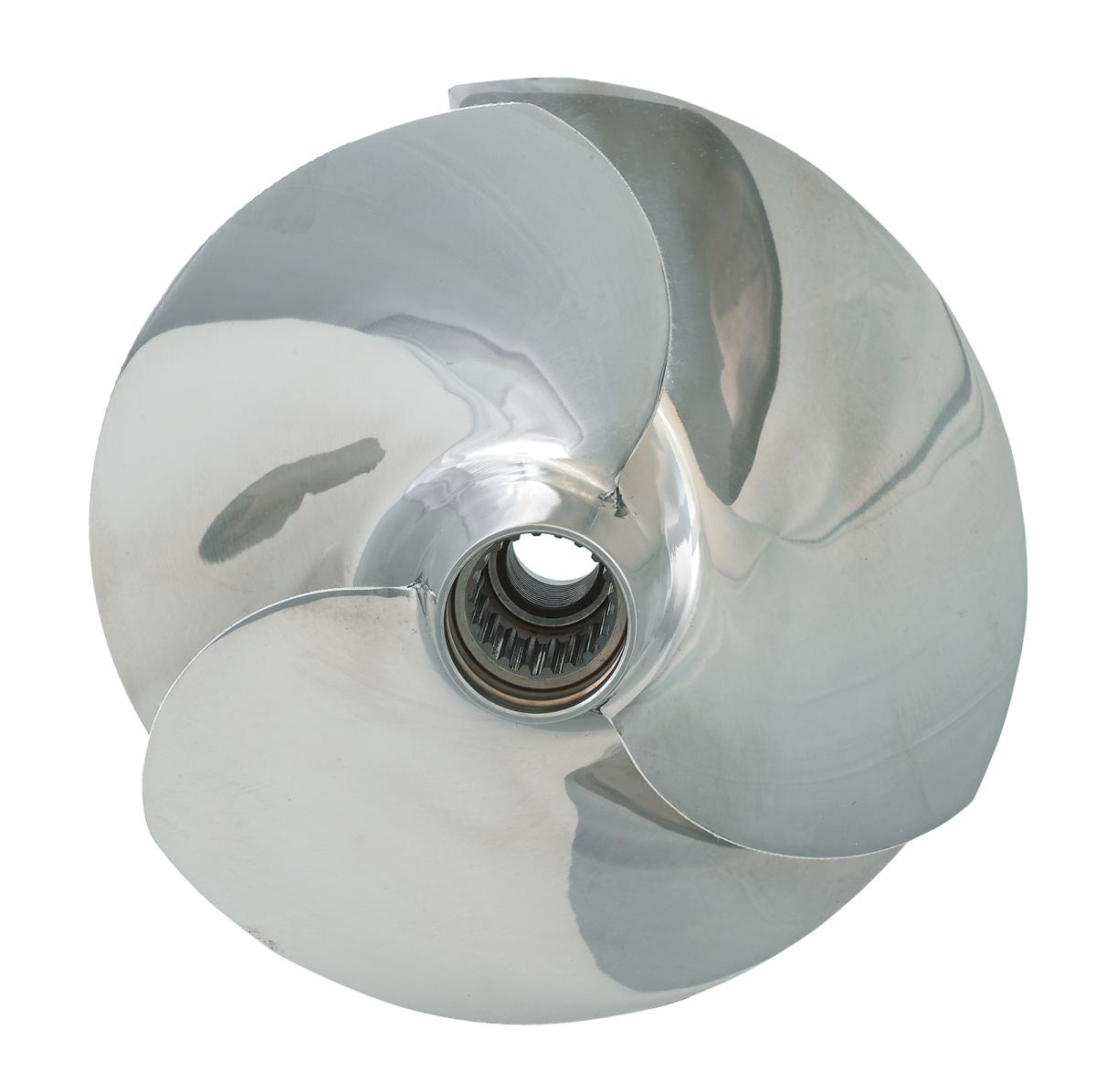

Solas Concord Impeller for Polaris PA-CD-12/18

Concord - The Power Torque Series With features like a large blade area and a unique geometric blade design, the SOLAS Concord Impeller delivers remarkable thrust and extraordinary efficiency. As four stroke technologies become mainstream in the PWC world, the Concord design truly enhances the engine characteristics, not only delivering incredible acceleration but excellent top end performance. From water skiing to high speed cruising, this technologically advanced power torque design with its radial leading edge will offer everything you could ask for in an impeller.

1)Remove and separate the whole jet pump from the PWC

2)Remove the trail cone (or cap) from the stator

3)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6)Assemble the pump and put it back on the PWC.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series	Wrench	Seal
HA Concord Series	WR001	SLA010
PL Super Camber (ABC/IJK Series)	WR006	SL006
PA Super Camber (ABC/IJK Series) Xprop/Concord Series	WR006	SL006, SL012
PF Concord Series	WR006	SL009

• Hurricane 1996-1997
• SL700 1996-1997
• SL780 1996-1997
• SLT780 1996-1997
• SLX780 1996
• SLH 1998-2001
• Virage 2000-2004
• Freedom 2002-2004
• Virage I 2002-2004

• 1996 Polaris Hurricane
• 1996 Polaris SL700
• 1996 Polaris SL780
• 1996 Polaris SLT780
• 1996 Polaris SLX780
• 1997 Polaris Hurricane
• 1997 Polaris SL700
• 1997 Polaris SL780
• 1997 Polaris SLT780
• 1998 Polaris SLH
• 1999 Polaris SLH
• 2000 Polaris SLH
• 2000 Polaris Virage
• 2001 Polaris SLH
• 2001 Polaris Virage
• 2002 Polaris Virage
• 2002 Polaris Freedom
• 2002 Polaris Virage I
• 2003 Polaris Virage
• 2003 Polaris Freedom
• 2003 Polaris Virage I
• 2004 Polaris Virage
• 2004 Polaris Freedom
• 2004 Polaris Virage I
