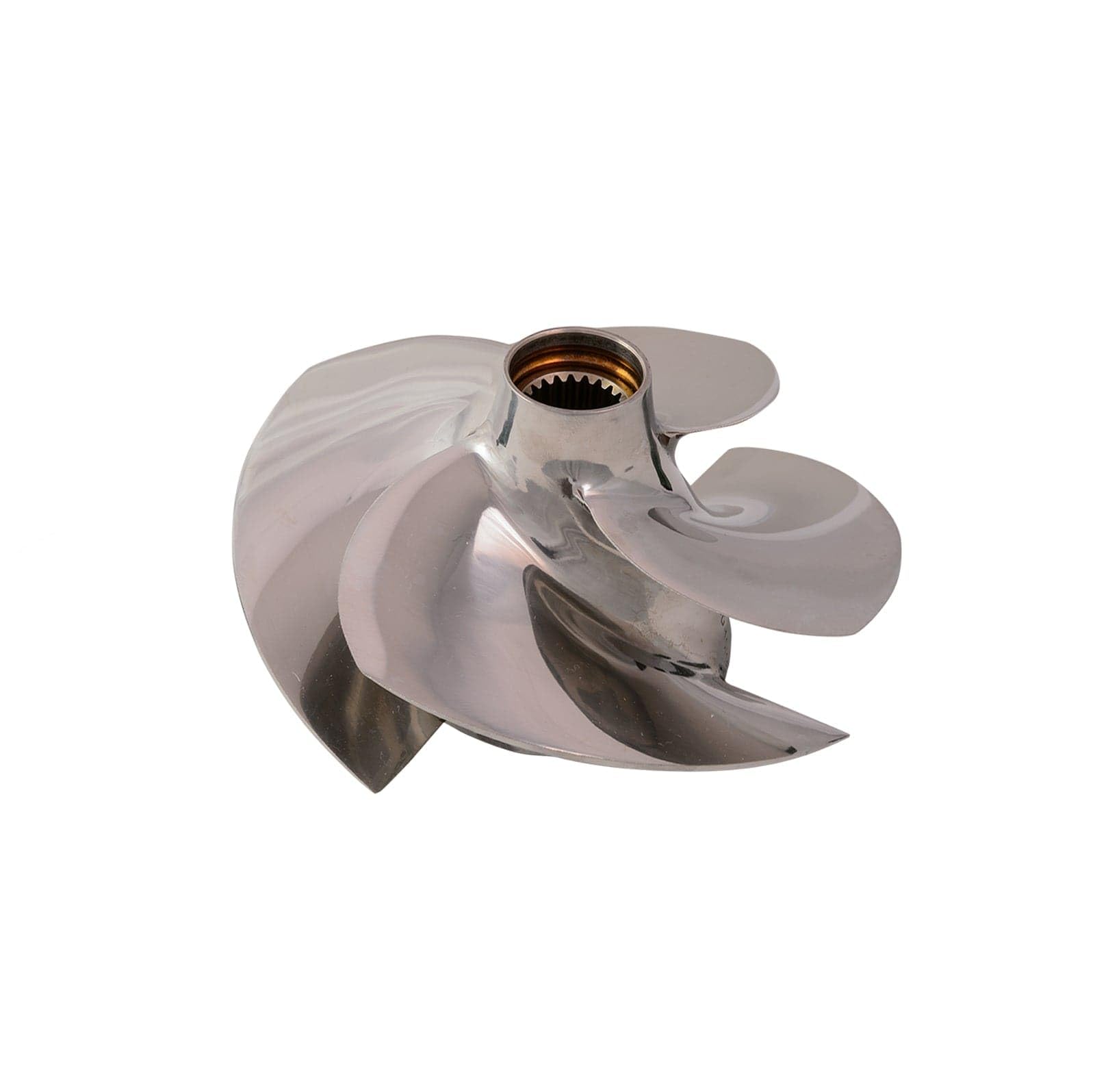

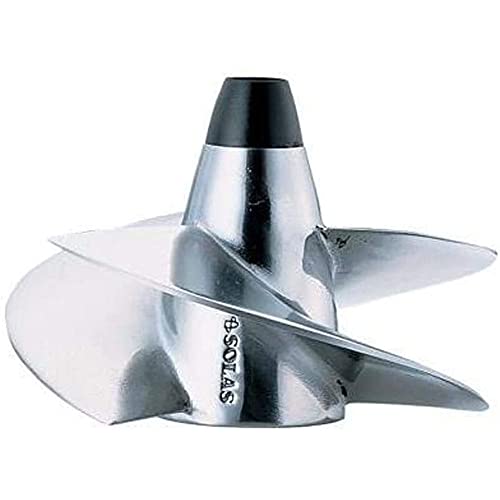

Solas Concord Impeller for Sea-Doo SR-CD-11/19A

Concord - The Power Torque Series With features like a large blade area and a unique geometric blade design, the SOLAS Concord Impeller delivers remarkable thrust and extraordinary efficiency. As four stroke technologies become mainstream in the PWC world, the Concord design truly enhances the engine characteristics, not only delivering incredible acceleration but excellent top end performance. From water skiing to high speed cruising, this technologically advanced power torque design with its radial leading edge will offer everything you could ask for in an impeller.

155.5mm Pump Diameter

2007 GTS SE 155
2008 GTS SE 155
2009 GTS SE 155
2010 GTS SE 155
2011 GTS SE 155
2012 GTS SE 155

2007 RXP 155HP
2008 RXP 155HP

2002 WAKE 155HP
2003 WAKE 155HP
2004 WAKE 155HP
2005 WAKE 155HP
2006 WAKE 155HP
2007 WAKE 155HP
2008 WAKE 155HP
2009 WAKE 155HP
2010 WAKE 155HP
2011 WAKE 155HP
2012 WAKE 155HP

2002 GTX 155HP
2003 GTX 155HP
2004 GTX 155HP
2005 GTX 155HP
2006 GTX 155HP
2007 GTX 155HP
2008 GTX 155HP
2009 GTX 155HP

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and refill O/E pump oil or grease to spec.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series	Wrench	Seal
SD Super Camber (ABC Series)	WR001	SL007
SD Super Camber (IJK Series)	WR001	SL007
SD, ST Xprop Series	WR001	SL007
SD, SF, ST Concord Series	WR001	SL007
ST Dynafly Series	WR001	SL007
SR Concord Series	WR011	SLA011 (24mm shaft) SLA011A (27mm shaft)
SRZ, SRX Concord Series	WR012	SLA012
