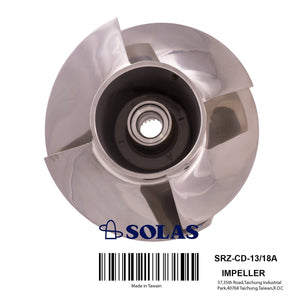

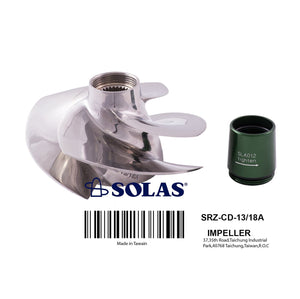

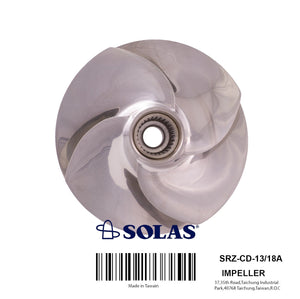

Solas Concord Impeller for Sea-Doo SRZ-CD-13/18A

Concord - The Power Torque Series With features like a large blade area and a unique geometric blade design, the SOLAS Concord Impeller delivers remarkable thrust and extraordinary efficiency. As four stroke technologies become mainstream in the PWC world, the Concord design truly enhances the engine characteristics, not only delivering incredible acceleration but excellent top end performance. From water skiing to high speed cruising, this technologically advanced power torque design with its radial leading edge will offer everything you could ask for in an impeller.

159mm Pump Diameter

2009 RXT 215HP
2010 RXT 215HP
2011 RXT 215HP
2012 RXT 215HP
2013 RXT 215HP

2009 WAKE PRO 215HP
2010 WAKE PRO 215HP
2011 WAKE PRO 215HP
2012 WAKE PRO 215HP
2013 WAKE PRO 215HP

2009 GTX 215HP
2010 GTX 215HP
2011 GTX 215HP
2012 GTX 215HP
2013 GTX 215HP

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and refill O/E pump oil or grease to spec.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series	Wrench	Seal
SD Super Camber (ABC Series)	WR001	SL007
SD Super Camber (IJK Series)	WR001	SL007
SD, ST Xprop Series	WR001	SL007
SD, SF, ST Concord Series	WR001	SL007
ST Dynafly Series	WR001	SL007
SR Concord Series	WR011	SLA011 (24mm shaft) SLA011A (27mm shaft)

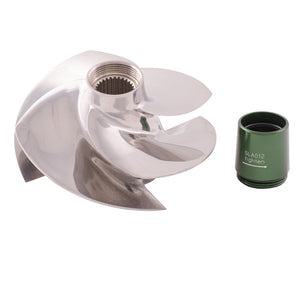

SRZ, SRX Concord Series	WR012	SLA012
