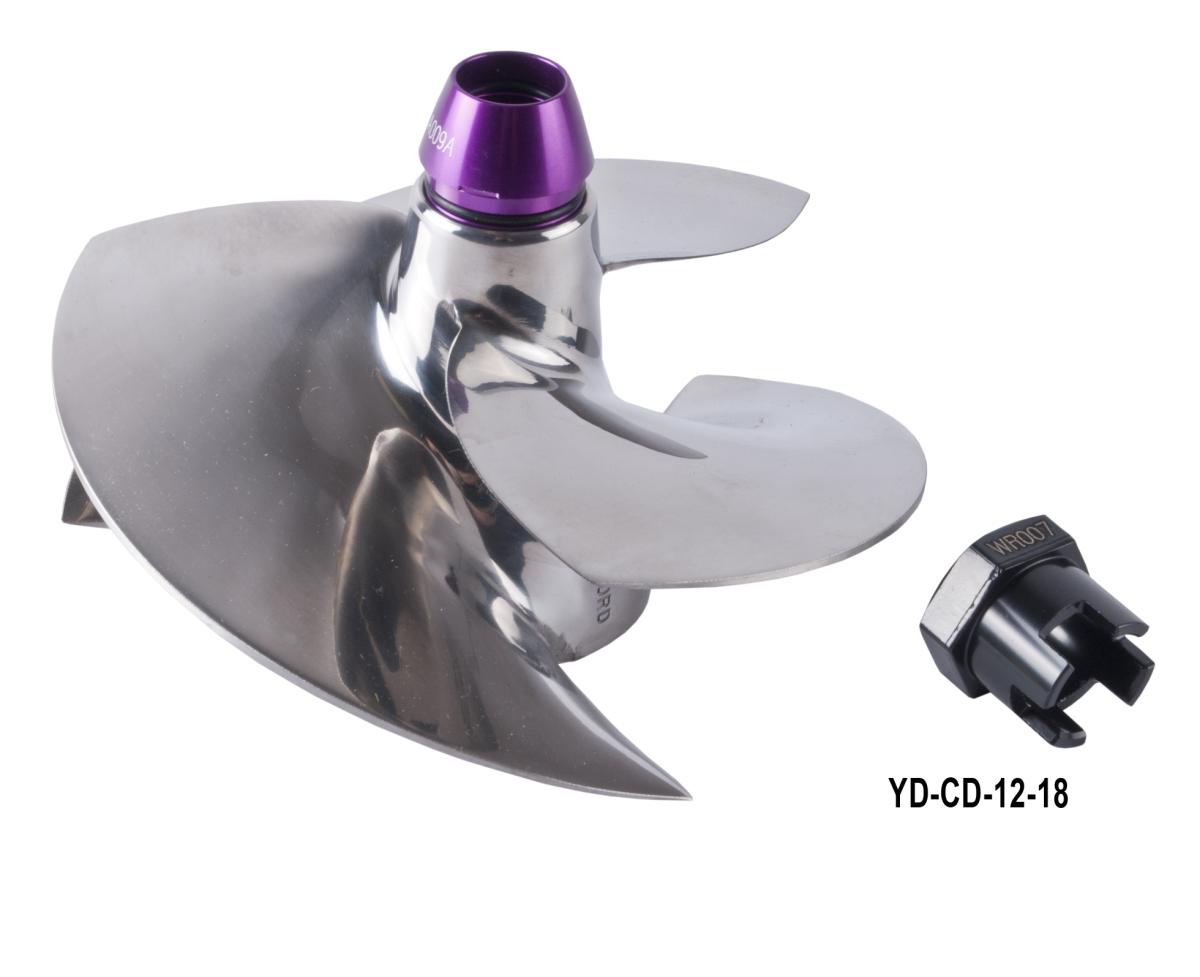

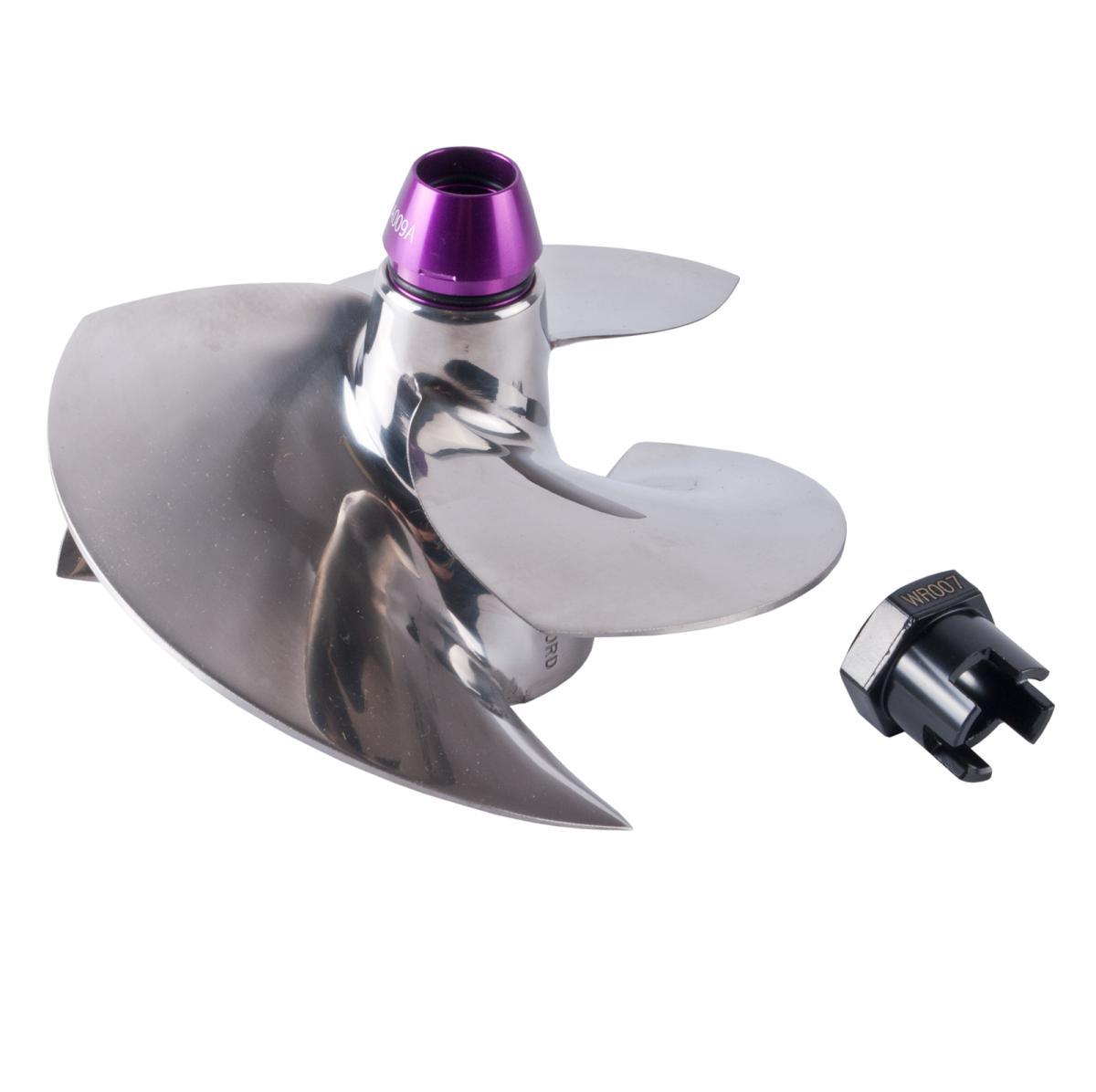

Solas Concord Impeller for Yamaha YD-CD-12/18

607SO139

Concord - The Power Torque Series With features like a large blade area and a unique geometric blade design, the SOLAS Concord Impeller delivers remarkable thrust and extraordinary efficiency. As four stroke technologies become mainstream in the PWC world, the Concord design truly enhances the engine characteristics, not only delivering incredible acceleration but excellent top end performance. From water skiing to high speed cruising, this technologically advanced power torque design with its radial leading edge will offer everything you could ask for in an impeller.
1998 Wave Runner XL 1200
1999 Wave Runner XL 1200

1995 Wave Raider
1996 Wave Raider
1997 Wave Raider

1995 Wave Venture 1100
1996 Wave Venture 1100
1997 Wave Venture 1100

1998 XL 1200
1.)Remove and separate the whole jet pump from the PWC

2.)For YH Series impeller, remove the trail cone (or cap) from the stator. For all others, hold the front end of the drive shaft with a shaft holder (optional part) on bench vise.

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench (optional part). Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and refill O/E pump oil or grease to spec. (for YH series assemble the pump and put it back on the PWC)

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series

Wrench

Holder

Seal

YA Super Camber (ABC/IJK Series)

WR003

WR003H

SL003

YB Super Camber (IJK Series)
XProp Series, Concord Series

WR004

WR004H

SLA008 (18mm shaft)
SL008A (15mm shaft)

YD Super Camber Series (IJK Series) Xprop Series

WR004

WR004H

SLA008

YD Concord Series

WR007

WR007H

SLA009A

YF Concord/Xprop Series

WR007

WR007H

SLA009

YG Dynafly Series

WR007

WR007H

SLA009

YS Dynafly Series

WR014

WR014H

SLA014

YS Concord Series

WR014

WR014H

SLA016

YH Concord Series (only for 2005-06 VX110 Sport and VX700 2006)

WR001



SLA009
