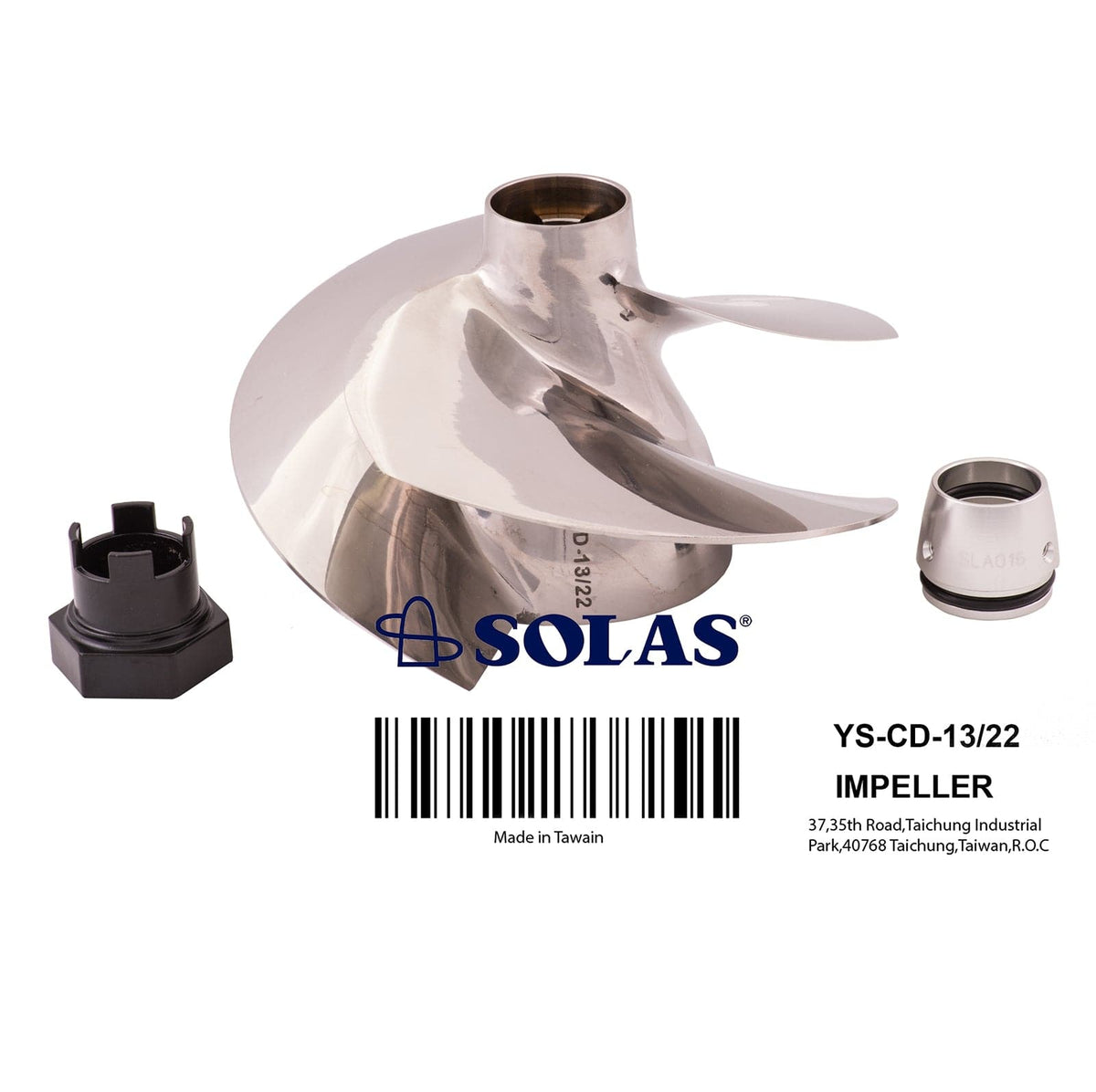

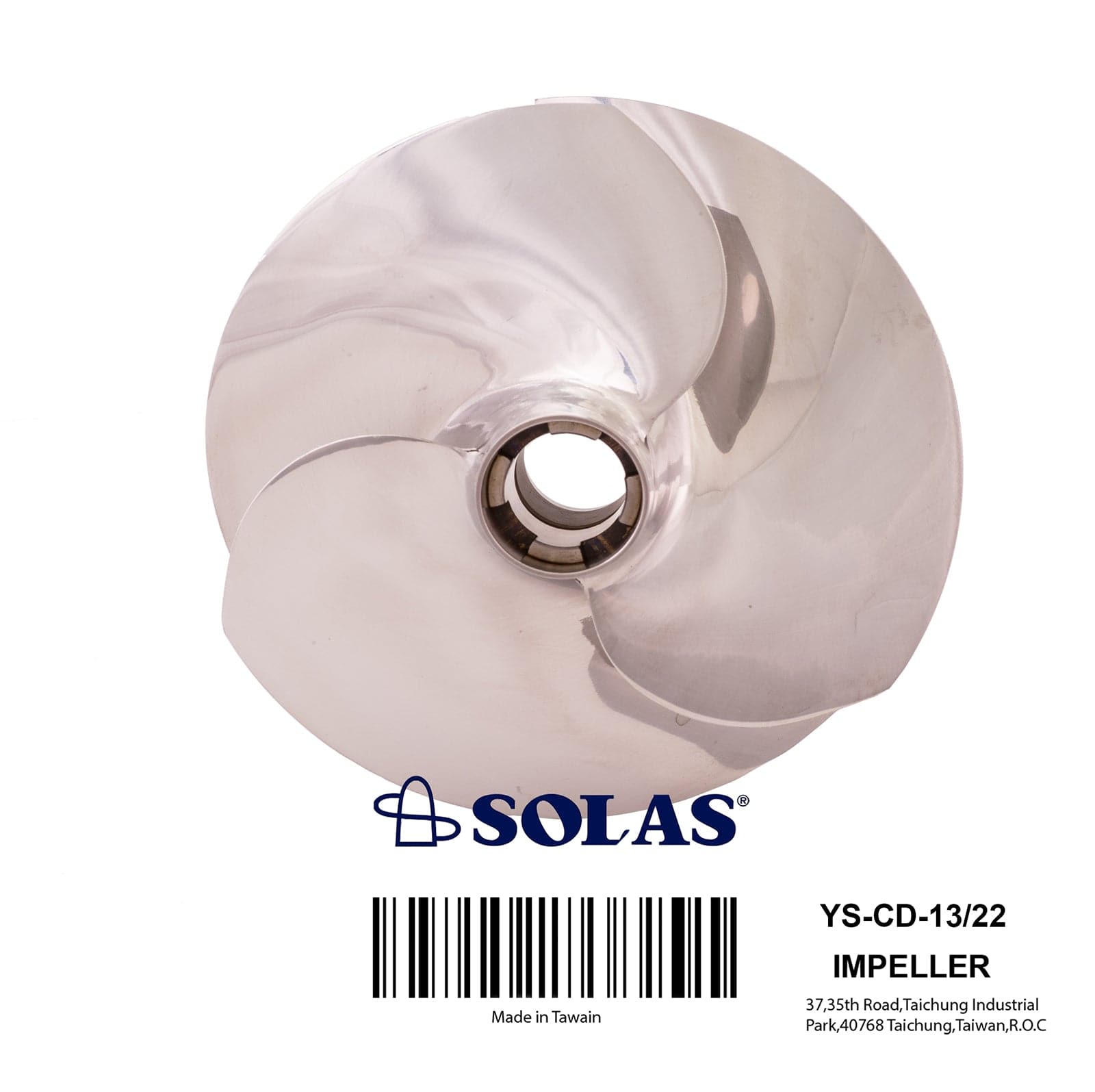

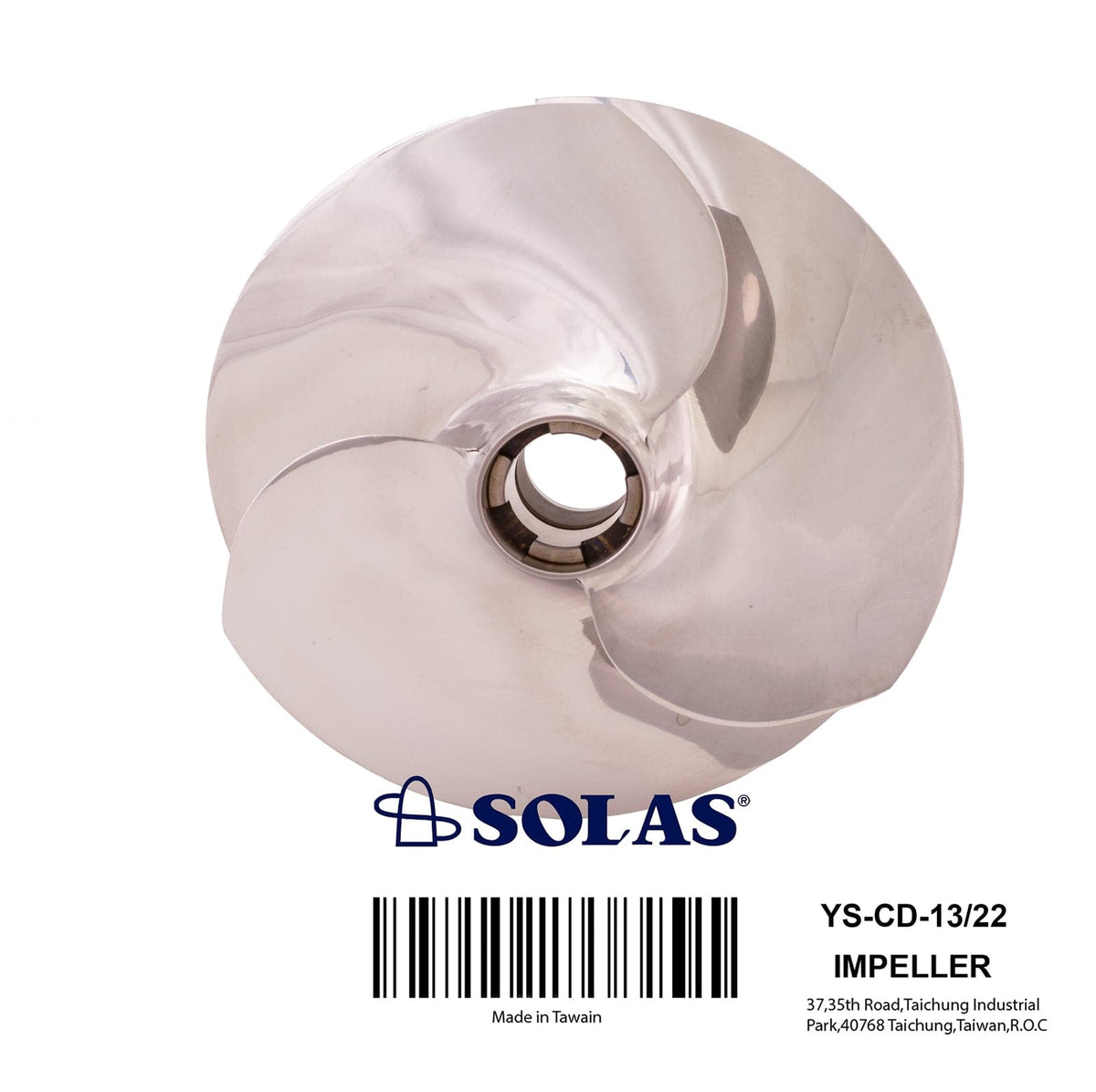

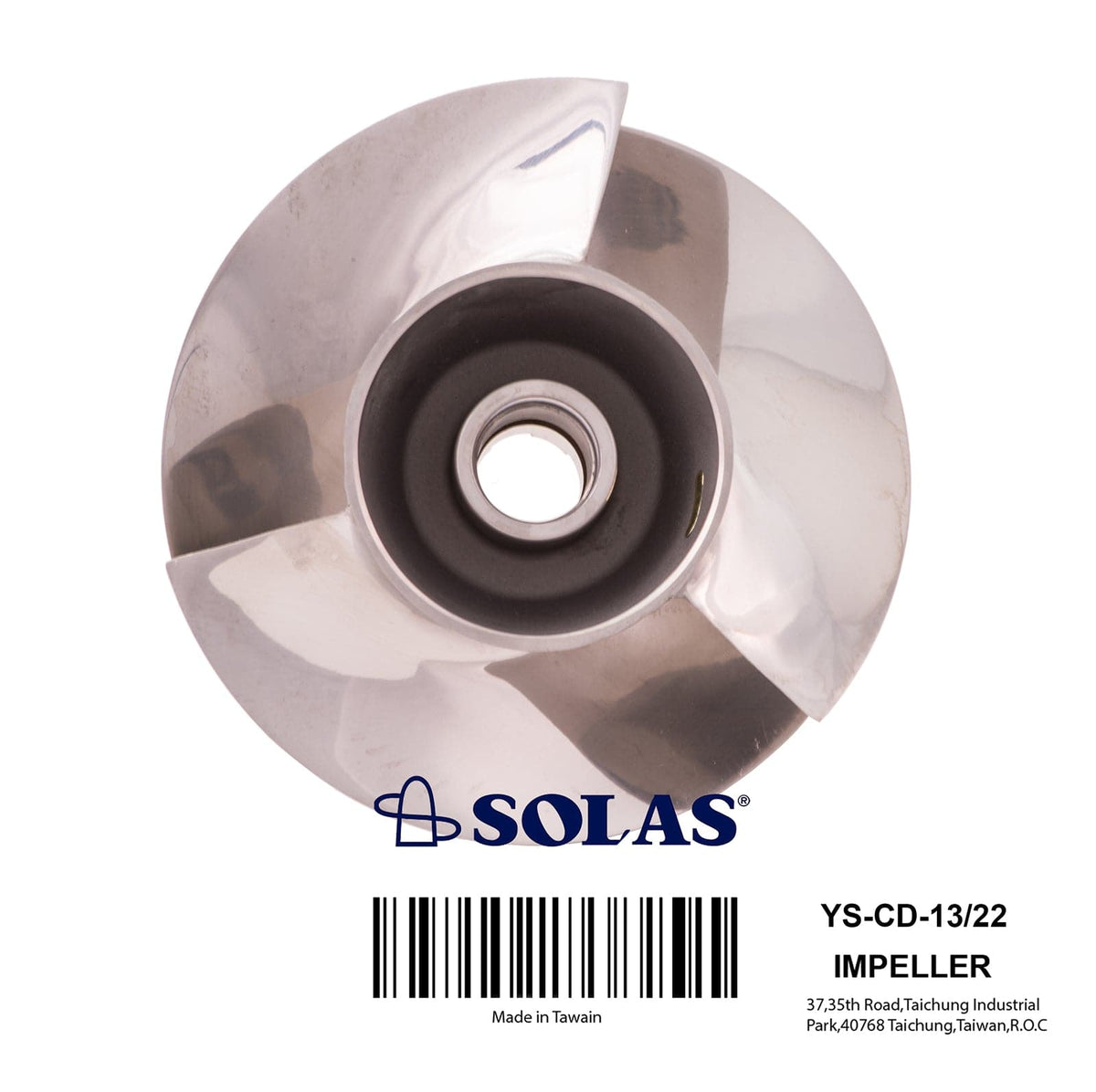

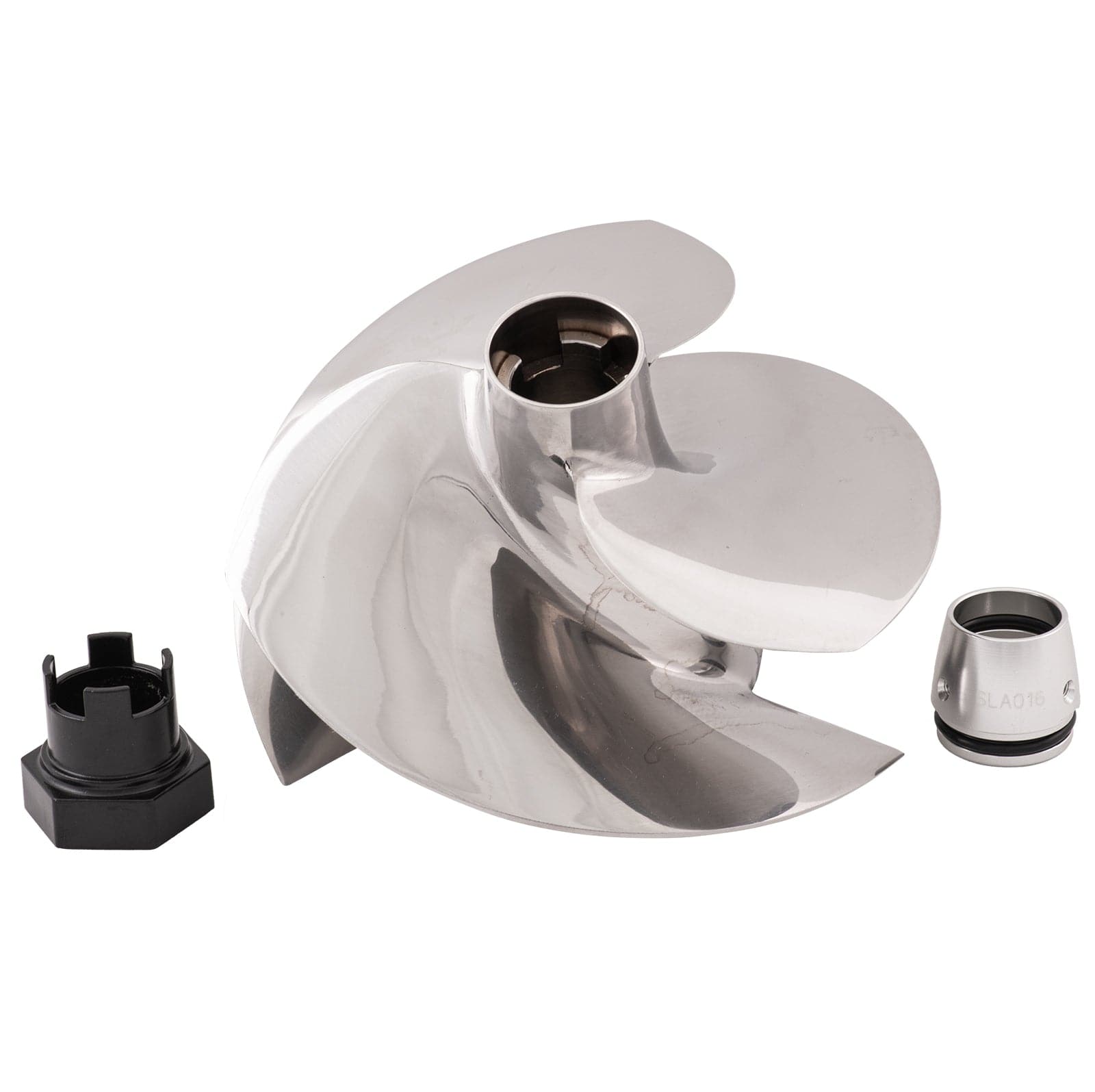

Solas Concord Impeller for Yamaha YS-CD-13/22

Concord - The Power Torque Series With features like a large blade area and a unique geometric blade design, the SOLAS Concord Impeller delivers remarkable thrust and extraordinary efficiency. As four stroke technologies become mainstream in the PWC world, the Concord design truly enhances the engine characteristics, not only delivering incredible acceleration but excellent top end performance. From water skiing to high speed cruising, this technologically advanced power torque design with its radial leading edge will offer everything you could ask for in an impeller.

2009 FX Cruiser High Output

2009 FX HO
2010 FX HO
2011 FX HO
2012 FX HO
2013 FX HO

2009 FX Cruiser HO
2010 FX Cruiser HO
2011 FX Cruiser HO
2012 FX Cruiser HO
2013 FX Cruiser HO

2008 FX Cruiser SHO
2009 FX Cruiser SHO
2010 FX Cruiser SHO
2011 FX Cruiser SHO
2012 FX Cruiser SHO
2013 FX Cruiser SHO

2008 FZR SHO
2009 FZR SHO
2010 FZR SHO
2011 FZR SHO
2012 FZR SHO
2013 FZR SHO

2008 FZS SHO
2009 FZS SHO
2010 FZS SHO
2011 FZS SHO
2012 FZS SHO
2013 FZS SHO

1.)Remove and separate the whole jet pump from the PWC

2.)For YH Series impeller, remove the trail cone (or cap) from the stator. For all others, hold the front end of the drive shaft with a shaft holder (optional part) on bench vise.

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench (optional part). Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and refill O/E pump oil or grease to spec. (for YH series assemble the pump and put it back on the PWC)

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series	Wrench	Holder	Seal
YA Super Camber (ABC/IJK Series)	WR003	WR003H	SL003
YB Super Camber (IJK Series) XProp Series, Concord Series	WR004	WR004H	SLA008 (18mm shaft) SL008A (15mm shaft)
YD Super Camber Series (IJK Series) Xprop Series	WR004	WR004H	SLA008
YD Concord Series	WR007	WR007H	SLA009A
YF Concord/Xprop Series	WR007	WR007H	SLA009
YG Dynafly Series	WR007	WR007H	SLA009
YS Dynafly Series	WR014	WR014H	SLA014
YS Concord Series	WR014	WR014H	SLA016
YH Concord Series (only for 2005-06 VX110 Sport and VX700 2006)	WR001	Â	SLA009
