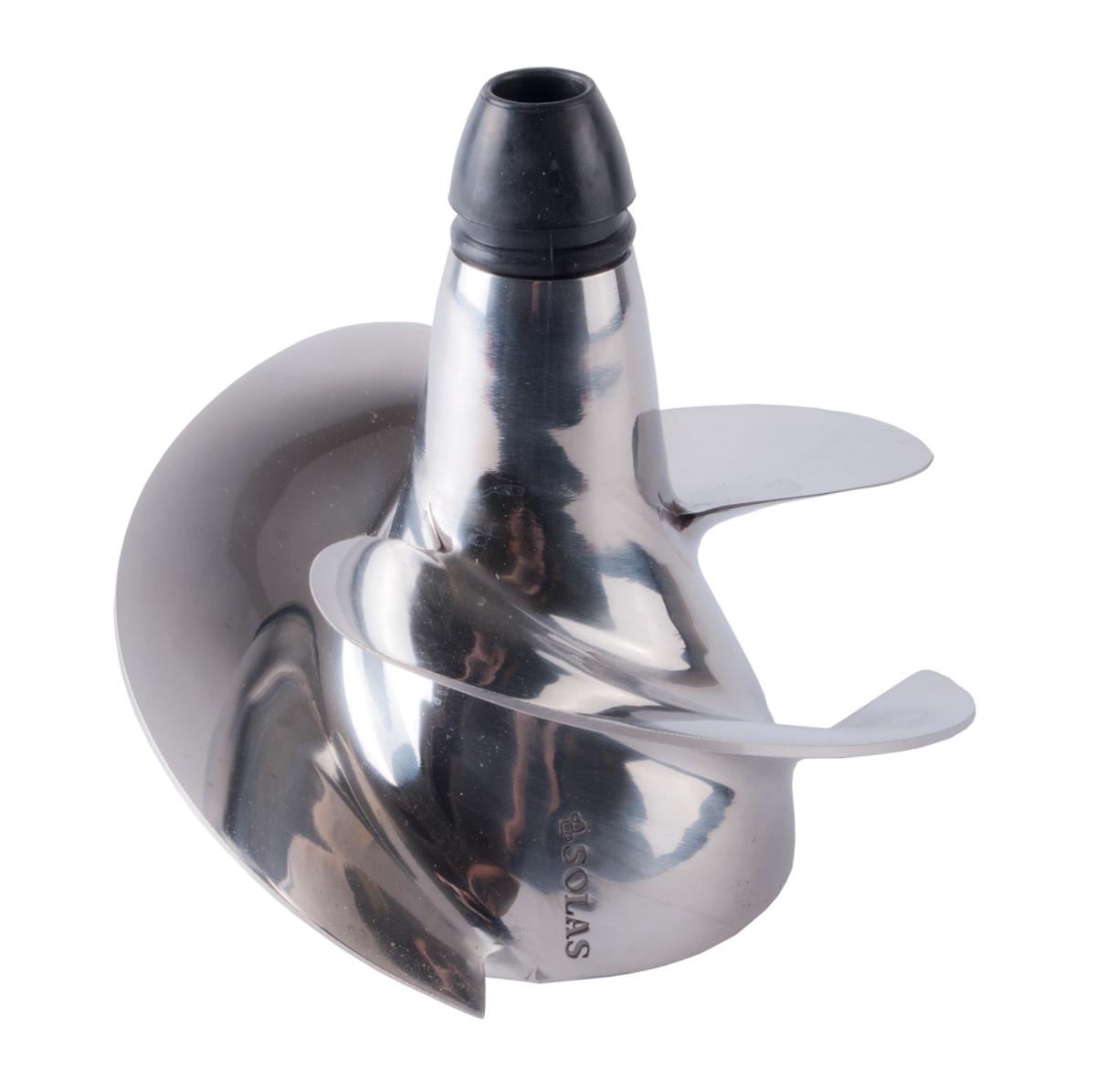

Solas DynaFly Impeller for Kawasaki KH-DF-16/20

607SO041

Dynafly Maximum Acceleration Our new impeller is designed to give high compression ratio pumps a stronger acceleration with less cavitation. This impeller is capable of giving your PWC an incredible boost in its performance. The SOLAS product line includes Dynafly impellers for the Kawasaki Ultra 150 pump and the Sea Doo 951 pump. SOLAS also has developed new impellers for other pumps. Please check the application chart for further details.
1999 ULTRA 150
2000 ULTRA 150
2001 ULTRA 150
2002 ULTRA 150
2003 ULTRA 150
2004 ULTRA 150
2005 ULTRA 150
2006 ULTRA 150
1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and put it back on the PWC.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series

Wrench

Seal

KA Super Camber (ABC/IJK Series)

WR001

SLA009

KB Super Camber (ABC Series)

WR002

SL002

KC Super Camber (ABC Series)

WR005

Original

KD Super Camber (ABC Series)

WR001

SLA009

KE Super Camber (ABC/IJK Series)
Xprop/Concord Series
KP Concord/Dynafly Series

WR001

SLA009

KF Super Camber (IJK Series)
XProp Series

WR001

SLA009

KG Xprop/Concord Series

WR001

SLA009

KH Dynafly Series

WR001

SL007

KX Concord Series

WR001

SLA009
