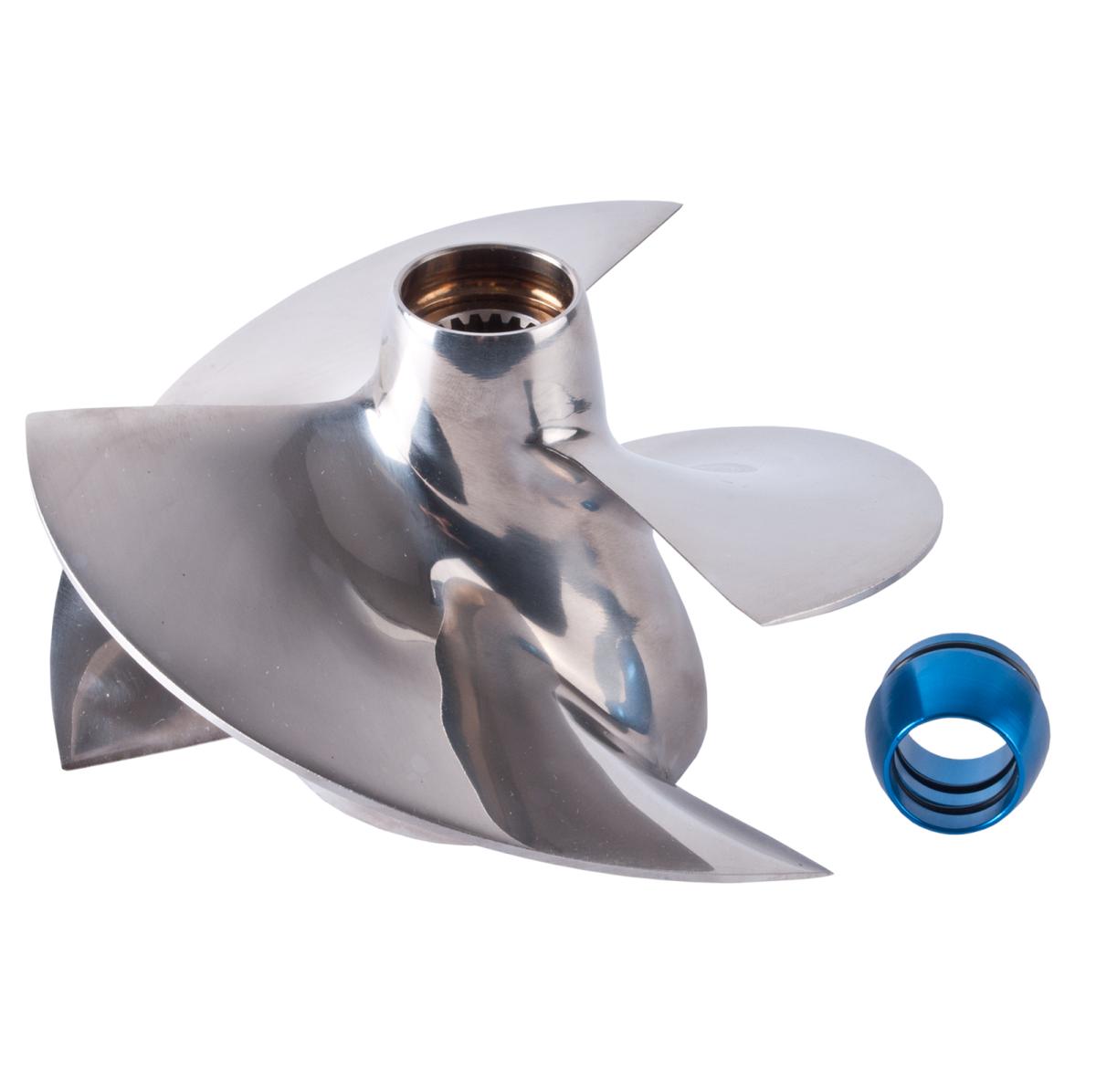

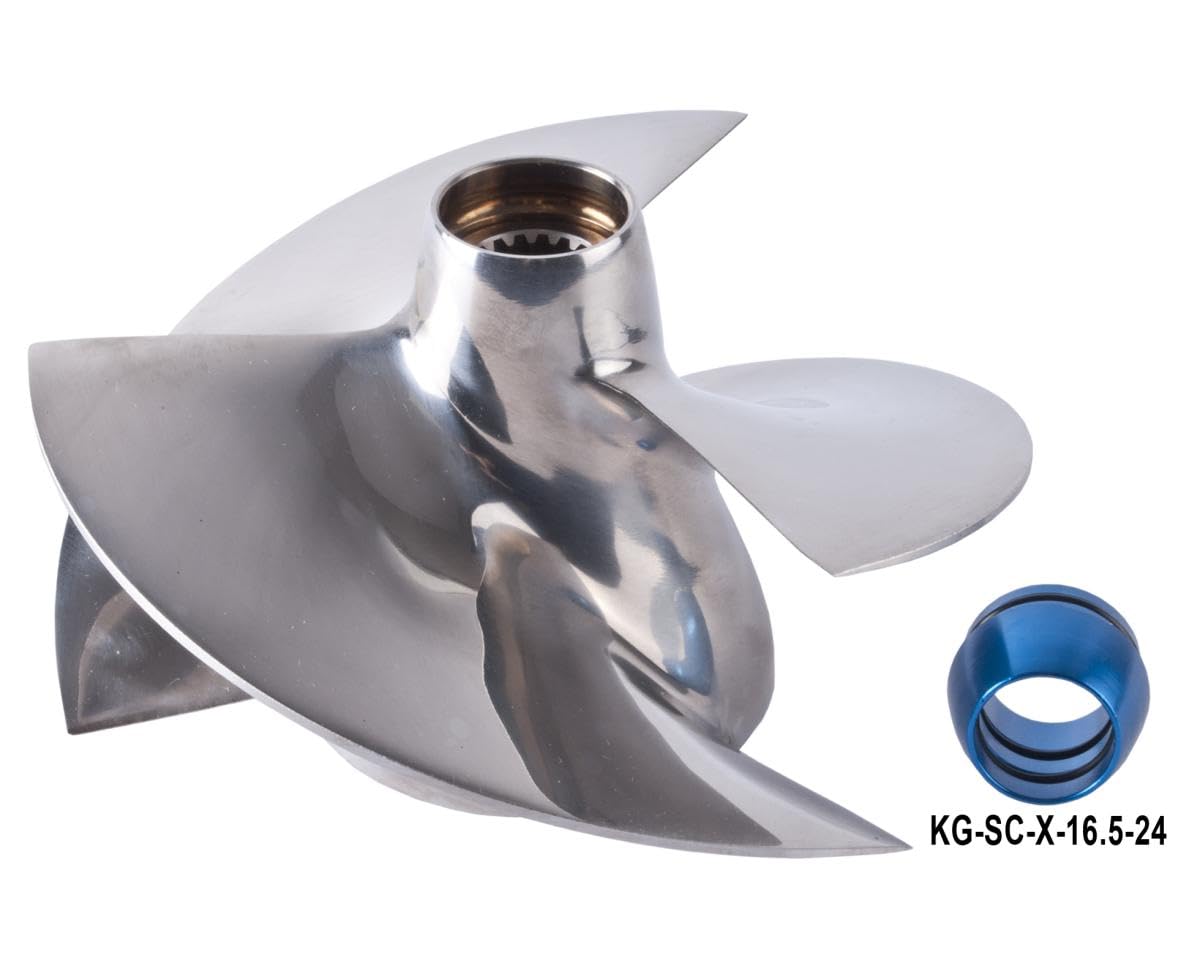

Solas Xprop Impeller for Kawasaki KG-SC-X (16.5-24)

607SO039

X-prop - High Speed & Ultimate Performance. The SOLAS X prop gives you the most powerful propulsion in the water from an advanced design that incorporates a high compression hub and cambered blades. Enthusiasts looking for speed and acceleration from the novice to the professional will be satisfied using this impeller. You can trust the harsh field testing of the X prop by Team SOLAS.
2001 1100 STX DI
2002 1100 STX DI
2003 1100 STX DI

1997 1100 STX
1998 1100 STX

1996 1100 ZXi
1997 1100 ZXi
1998 1100 ZXi
1999 1100 ZXi
2000 1100 ZXi
2001 1100 ZXi
2002 1100 ZXi
2003 1100 ZXi
1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and put it back on the PWC.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series

Wrench

Seal

KA Super Camber (ABC/IJK Series)

WR001

SLA009

KB Super Camber (ABC Series)

WR002

SL002

KC Super Camber (ABC Series)

WR005

Original

KD Super Camber (ABC Series)

WR001

SLA009

KE Super Camber (ABC/IJK Series)
Xprop/Concord Series
KP Concord/Dynafly Series

WR001

SLA009

KF Super Camber (IJK Series)
XProp Series

WR001

SLA009

KG Xprop/Concord Series

WR001

SLA009

KH Dynafly Series

WR001

SL007

KX Concord Series

WR001

SLA009
